1.2KW Portable Power Station (B-series 800Wh-1.5KWh)
1.2KW Portable Power Station (B-series 800Wh-1.5KWh)
1200W Portable LiFePO4 Power Station
High-Capacity Power for Home, Travel & Outdoor Use
The XW-B12 Series is a high-capacity portable energy storage power station designed for home backup, camping, RV travel, outdoor work and emergency use. It combines a 1200W pure sine wave inverter, LiFePO4 battery, USB-C PD fast charging, intelligent BMS protection, LED lighting and multiple AC, DC and USB outputs.
Pure Sine Wave
Battery Options
Solar Input
USB-C Charging
Key Features
Integrated carrying handle for convenient transportation, camping, travel and outdoor work.
Delivers stable AC 220V / 50Hz power for compatible electronics, appliances and electric tools.
Four battery capacity options are available, ranging from 768Wh to 1536Wh.
The optional MPPT tracking system can improve solar charging efficiency by up to 20%.
Supports optional photovoltaic panels up to 200W for outdoor and off-grid charging.
Helps protect against overcharging, over-discharging, overcurrent, short circuits and abnormal voltage.
Fast charging for compatible smartphones, tablets, laptops and other USB-C devices.
Displays battery level, voltage, charging status, output power and operating information.
Convenient lighting for camping, nighttime work, emergency situations and home power outages.
Choose Your Model
12.8V / 60Ah
768Wh
18V / 160W
13.02kg
12.8V / 80Ah
1024Wh
18V / 180W
14.6kg
12.8V / 86Ah
1100.8Wh
18V / 200W
15.7kg
12.8V / 120Ah
1536Wh
18V / 200W
18.3kg
Solar panels are not included in the standard package and are priced separately. The maximum supported photovoltaic input is 18V / 200W.
The MPPT solar charging module may be optional depending on the selected configuration. Please confirm the configuration before ordering.

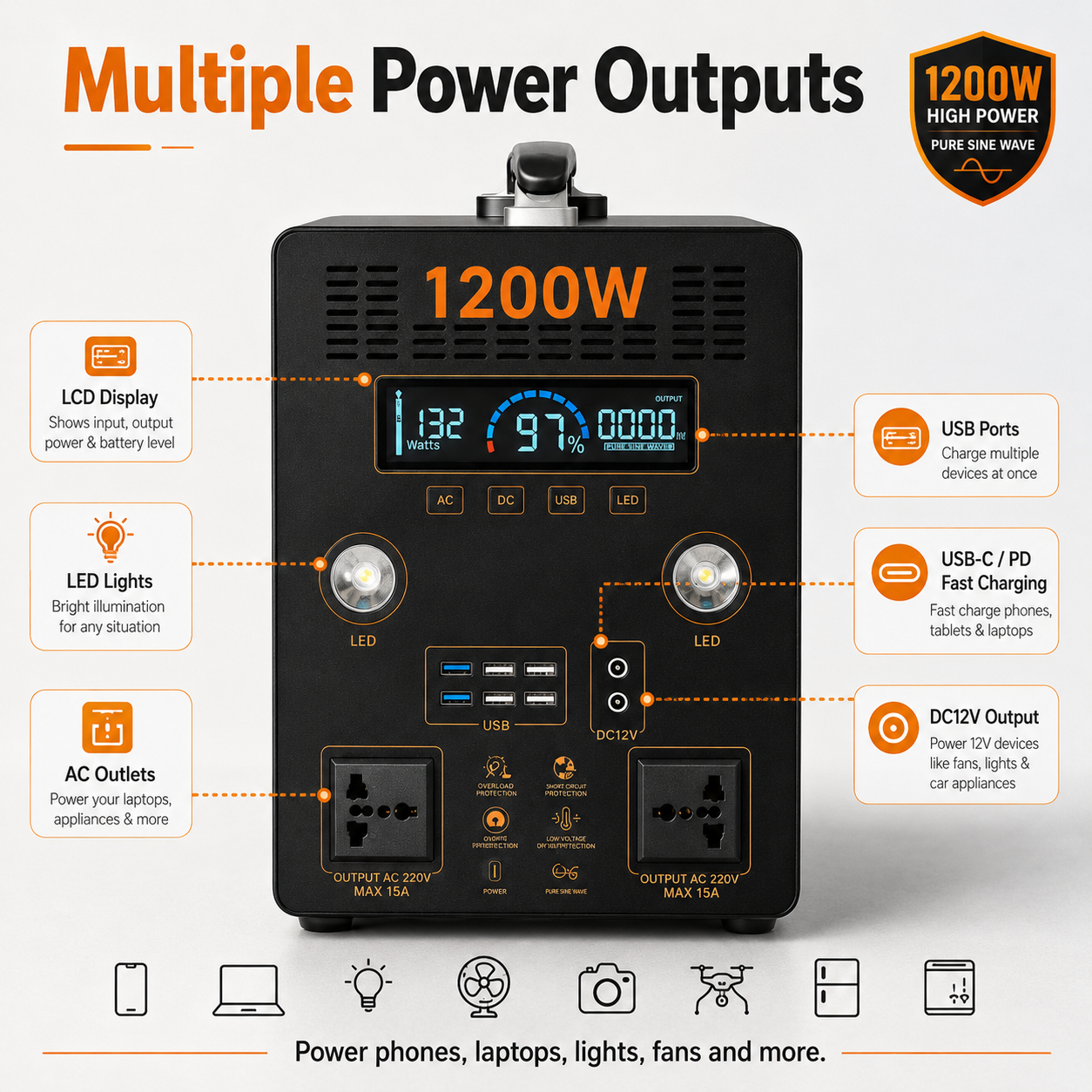

Multiple Power Outputs
220V / 1200W
50Hz
2 Outlets
PD 64W
5V / 3A
2 × DC5521
12V / 8A
18V / 200W Max
Display, Lighting & Controls
Large LCD Display
Displays battery capacity, charging information, input voltage,
output power and operating status.
Built-in LED Lighting
Provides convenient lighting for camping, outdoor work,
emergencies and power outages.
Independent AC, DC & LED Controls
Separate controls allow convenient operation of the AC output,
DC output and LED lighting.
View Technical Specifications
Battery Type: LiFePO4
Inverter Type: Pure sine wave
Rated Inverter Power: 1200W
Rated AC Output: AC 220V / 50Hz / 1200W
AC Outlets: 2
Maximum Solar Input: 18V / 200W
Optional MPPT Input: 15–24V / 10A
DC Output: 2 × DC 12V / 8A
DC Interface: DC5521
USB-C Output: Type-C 3.0 / PD 64W
USB Output: 5V / 3A
Charging Cut-off Voltage: 3.65V per cell
Nominal Cell Voltage: 3.2V per cell
Discharge Cut-off Voltage: 2.3V per cell
BMS Protection Range: 9.2–14.6V / 100A
Dedicated Charger Input: AC 100–240V
Dedicated Charger Output: 14.6V / 5A
Charging Interface: DC5521
Housing: Metal housing with black front panel and orange accents

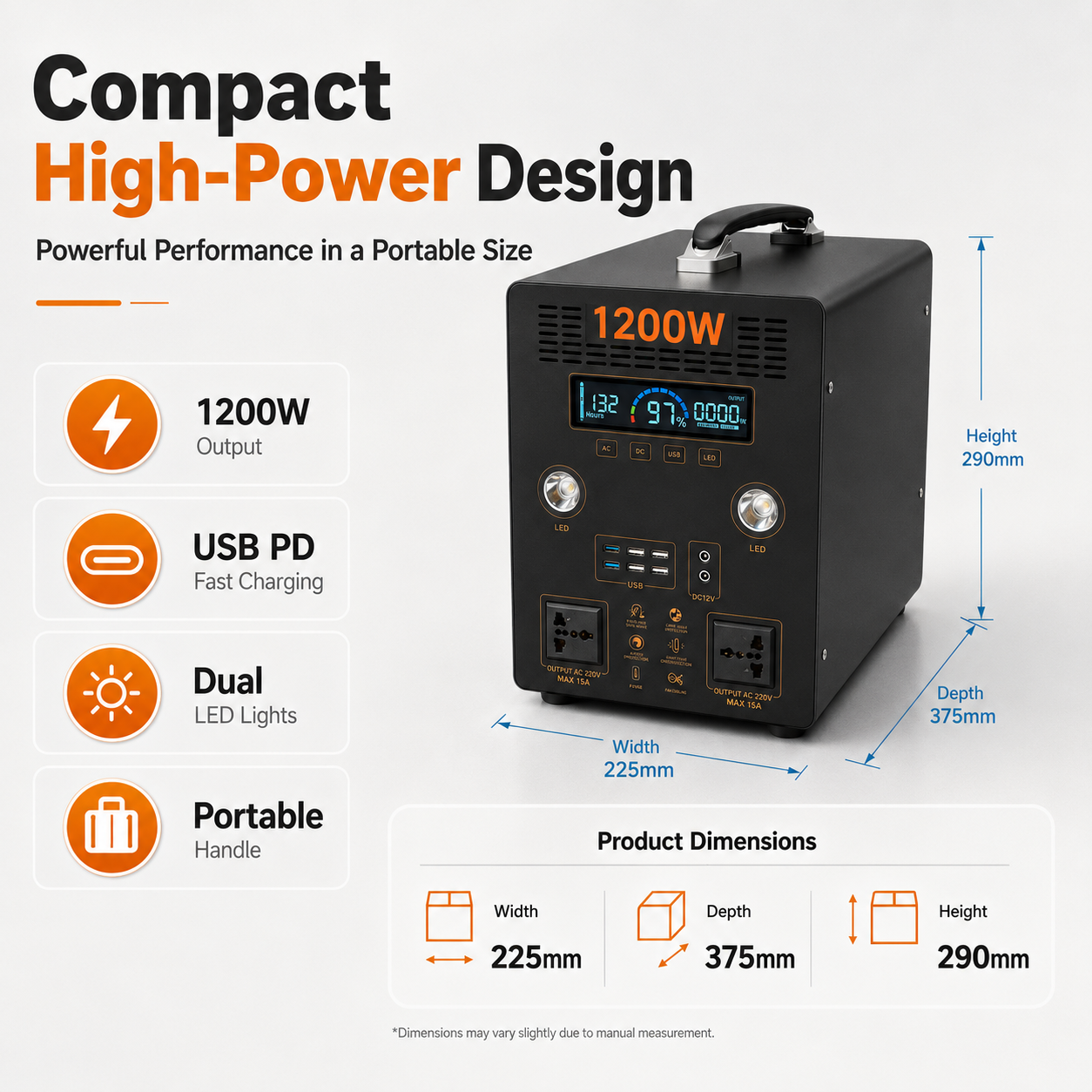

Product Size: 375 × 225 × 290mm
Package Size: 445 × 325 × 360mm
Safety Protection
✓ Intelligent BMS battery management
✓ Overcharge protection
✓ Over-discharge protection
✓ Overcurrent protection
✓ Short-circuit protection
✓ Overvoltage protection
✓ Temperature protection
Suitable Applications
✓ Home emergency backup
✓ Outdoor camping and RV travel
✓ Smartphone and tablet charging
✓ Laptop and computer power
✓ Emergency and outdoor lighting
✓ Portable speakers
✓ Electric fans
✓ TVs and compatible displays
✓ Rice cookers and compatible appliances
✓ Compatible electric tools
CE · RoHS · FCC · UN38.3 · MSDS · Air Freight Report · Sea Freight Report
