1000W Portable LiFePO4 Power Station
Fast Solar Charging for Home, Camping, Travel & Emergency Backup
XW-F10 Series is a compact portable energy storage power station designed for home backup, camping, RV travel, outdoor work and emergency power.
It combines a 1000W pure sine wave inverter, LiFePO4 battery, MPPT solar charging, intelligent BMS protection, wireless charging, USB-C PD fast charging, DC 24V output and built-in LED lighting.
Pure Sine Wave
Capacity Options
Solar Input
USB-C Charging
Key Features
Designed for convenient use at home, during travel, camping, outdoor activities and emergency situations.
Durable dark-gray and gray ABS housing provides a modern appearance and practical protection for daily use.
Delivers stable AC 220V / 50Hz output for compatible household appliances, electronics and outdoor equipment.
Available in 640Wh, 768Wh and 1024Wh configurations for different backup-power and runtime requirements.
The MPPT tracking algorithm can improve photovoltaic charging efficiency by up to 20%.
Intelligent battery management provides charging, discharging, current and voltage protection to help extend battery life.
Supports fast charging for compatible laptops, tablets, smartphones and other USB-C devices.
Charge compatible Qi-enabled smartphones directly on the wireless charging area.
Provides DC 24V output for compatible vehicle equipment, portable devices and outdoor applications.
Includes LED lighting and a red/blue flashing mode activated by double-clicking the LED switch.
Choose Your Model
25.6V / 25Ah
640Wh
1000W
7.85kg
25.6V / 30Ah
768Wh
1000W
8.9kg
25.6V / 40Ah
1024Wh
1000W
11.3kg
Solar panels are not included in the standard package. Compatible solar panels, charging cables and accessories are optional and priced separately.
Power & Charging
Pure Sine Wave
1000W
220V / 50Hz
30–42V
300W Max
10A
PD 64W
5V / 3A
15W
24V / 8A

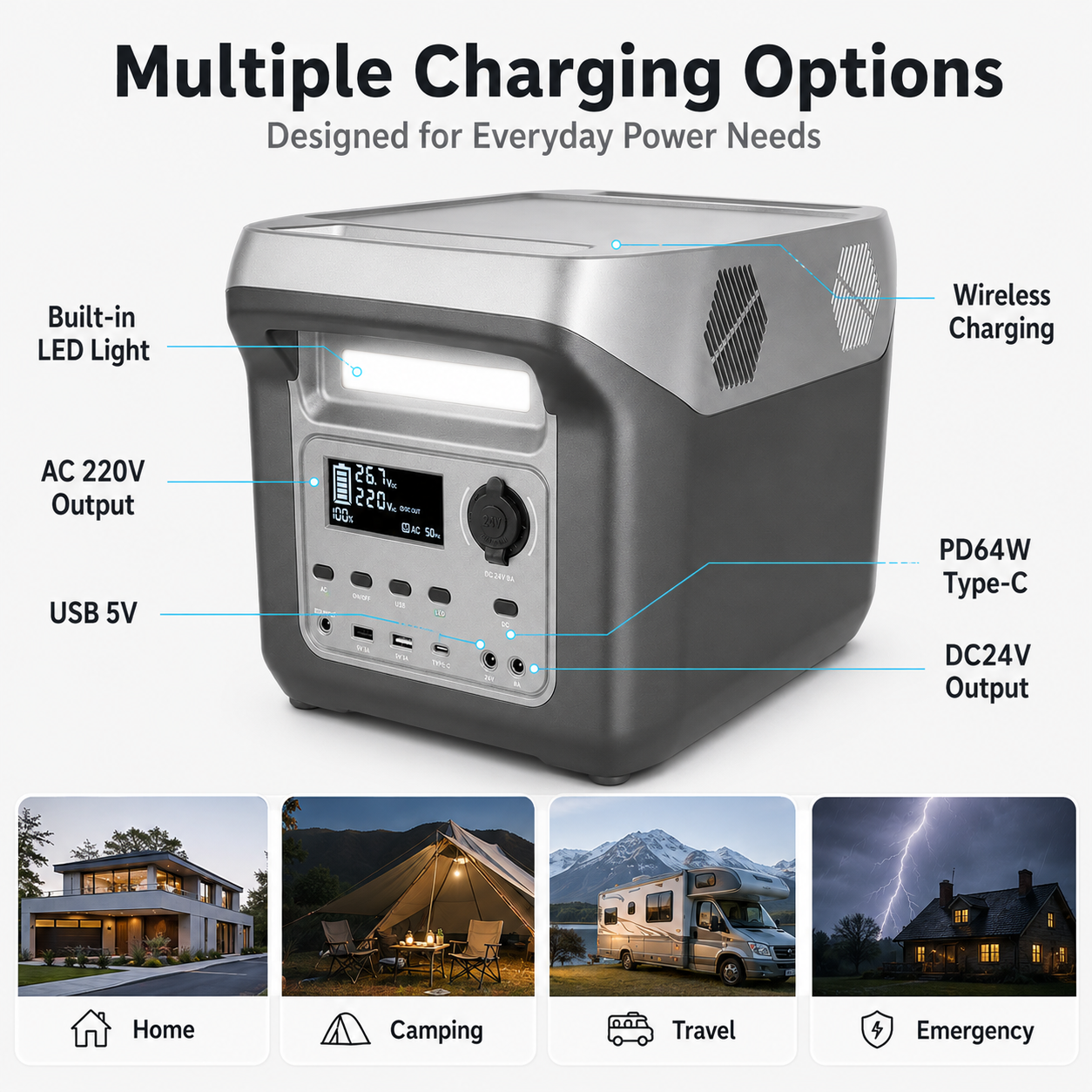

Display, Lighting & Controls
Large LCD Display
Displays charging and discharging power, battery capacity, AC load power and DC load power.
Independent AC/DC Controls
Separate AC and DC switches provide convenient output management and help reduce unnecessary power consumption.
Built-In LED Lighting
Provides convenient illumination for camping, emergencies and low-light working environments.
Red/Blue Flashing Mode
Double-click the LED switch to activate the red and blue flashing warning-light mode.
Suitable Applications
✓ Home emergency backup power
✓ Camping and outdoor activities
✓ RV travel and mobile living
✓ Smartphones and tablets
✓ Laptops and mobile office equipment
✓ LED lighting and speakers
✓ Fans and compatible televisions
✓ Small refrigerators within the rated limit
✓ Rice cookers and small kitchen appliances
✓ Compatible electric tools and field equipment
✓ DC 24V vehicle and outdoor devices
View Technical Specifications
Brand: Xingwei
Battery Type: LiFePO4
Battery System Voltage: 25.6V
Inverter Type: Pure sine wave
Rated Inverter Power: 1000W
AC Output: AC 220V / 50Hz
Maximum Solar Power: 300W
MPPT Input: 30–42V / 10A
DC Output: 24V / 10A
Dedicated Charger Input: AC 100–240V
Dedicated Charger Output: 29.2V / 5A
Wireless Charging: 15W
USB-C Output: PD 64W
USB Output: 5V / 3A
Vehicle Output: 24V / 8A
DC Ports: Two DC5521 ports
Charging Cut-off Voltage: 3.65V per cell
Nominal Cell Voltage: 3.2V per cell
Discharge Cut-off Voltage: 2.6V per cell
Charging Protection Voltage: 29.2V
Discharge Protection Voltage: 20V
BMS Protection Range: 20–29.2V / 50A
Housing Material: Fire-resistant ABS plastic
Housing Color: Dark gray and gray
Product Size: 295 × 205 × 225mm
Package Size: 340 × 250 × 315mm
Battery Management & Protection
✓ Intelligent BMS battery management
✓ Charging protection
✓ Discharging protection
✓ Voltage protection
✓ Current protection
✓ Battery-status monitoring
✓ Designed to extend battery service life
Refrigerators, rice cookers, fans, pumps and electric tools may require higher starting power than their normal operating power. Confirm both starting wattage and continuous wattage before connecting a device.
CE · RoHS · FCC · UN38.3 · MSDS · Air Freight Report · Sea Freight Report
