1500W Portable Power Station (F Series 1100-1536Wh)
1500W Portable Power Station (F Series 1100-1536Wh)

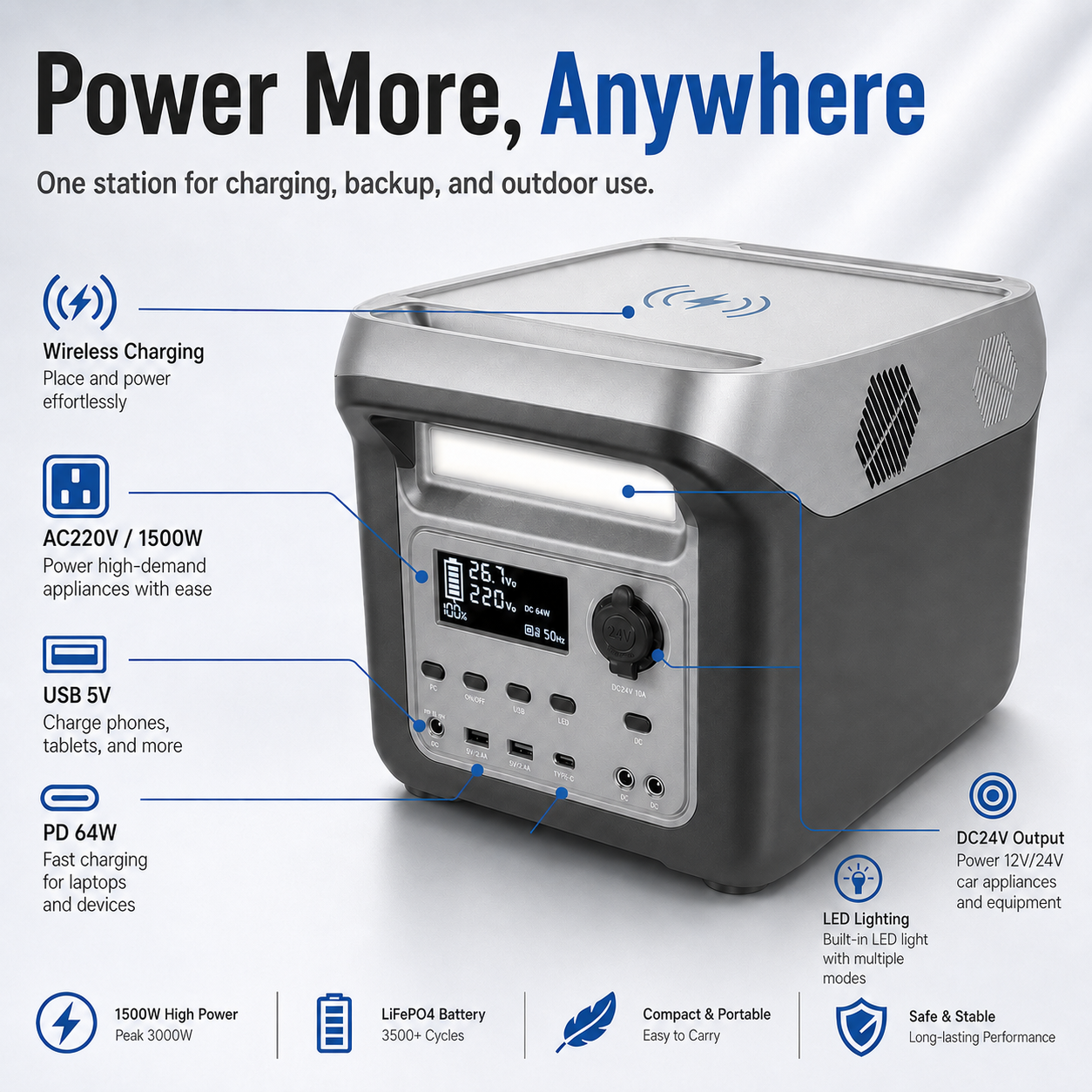

1500W Portable LiFePO4 Power Station
High-Capacity Power for Home Backup, Camping, Travel & Outdoor Work
The Chuanhe XW-F15 Series is a portable energy storage power station designed for home backup, camping, RV travel, mobile work and emergency power.
It combines a 1500W pure sine wave inverter, high-capacity LiFePO4 battery, MPPT solar charging, intelligent BMS protection, wireless charging, USB-C PD fast charging, DC 24V output and built-in LED lighting.
Pure Sine Wave
Capacity Options
MPPT Solar Input
USB-C Fast Charging
Key Features
Designed for home backup, outdoor travel, camping, mobile work and emergency electricity needs.
Durable dark-gray and gray ABS housing provides a modern appearance and practical protection for indoor and outdoor use.
Delivers stable AC 220V / 50Hz output for compatible household appliances, electronics and work equipment.
Available in 1100.8Wh, 1331.2Wh and 1536Wh configurations for different runtime and backup-power requirements.
The advanced MPPT tracking algorithm can improve photovoltaic charging efficiency by up to 20%.
Intelligent battery management helps protect the battery during charging and discharging and supports a longer service life.
Supports fast charging for compatible laptops, tablets, smartphones and other USB-C devices.
Charge compatible Qi-enabled smartphones directly on the wireless charging area.
Supports compatible vehicle equipment, portable devices and outdoor DC appliances.
Includes normal lighting and a red/blue flashing warning mode activated by double-clicking the LED switch.
Choose Your Model
25.6V / 43Ah
1100.8Wh
36V / 150W × 2
11.8kg
25.6V / 52Ah
1331.2Wh
36V / 200W × 2
13.6kg
25.6V / 60Ah
1536Wh
36V / 200W × 2
14.9kg
Solar panels are not included in the standard package. Compatible photovoltaic panels, cables and accessories are optional and priced separately.
Power & Charging
Pure Sine Wave
1500W
220V / 50Hz
30–42V
300W Max
10A
PD 64W
5V / 3A
15W
24V / 8A
Display, Lighting & Controls
Large LCD Display
Displays battery capacity, charging and discharging power, AC load power and DC load power.
Independent AC/DC Controls
Separate AC and DC switches provide convenient output management and help reduce unnecessary power consumption.
Built-In LED Lighting
Provides convenient illumination for camping, emergencies and low-light working environments.
Red/Blue Flashing Mode
Double-click the LED switch to activate the red and blue flashing warning-light mode.

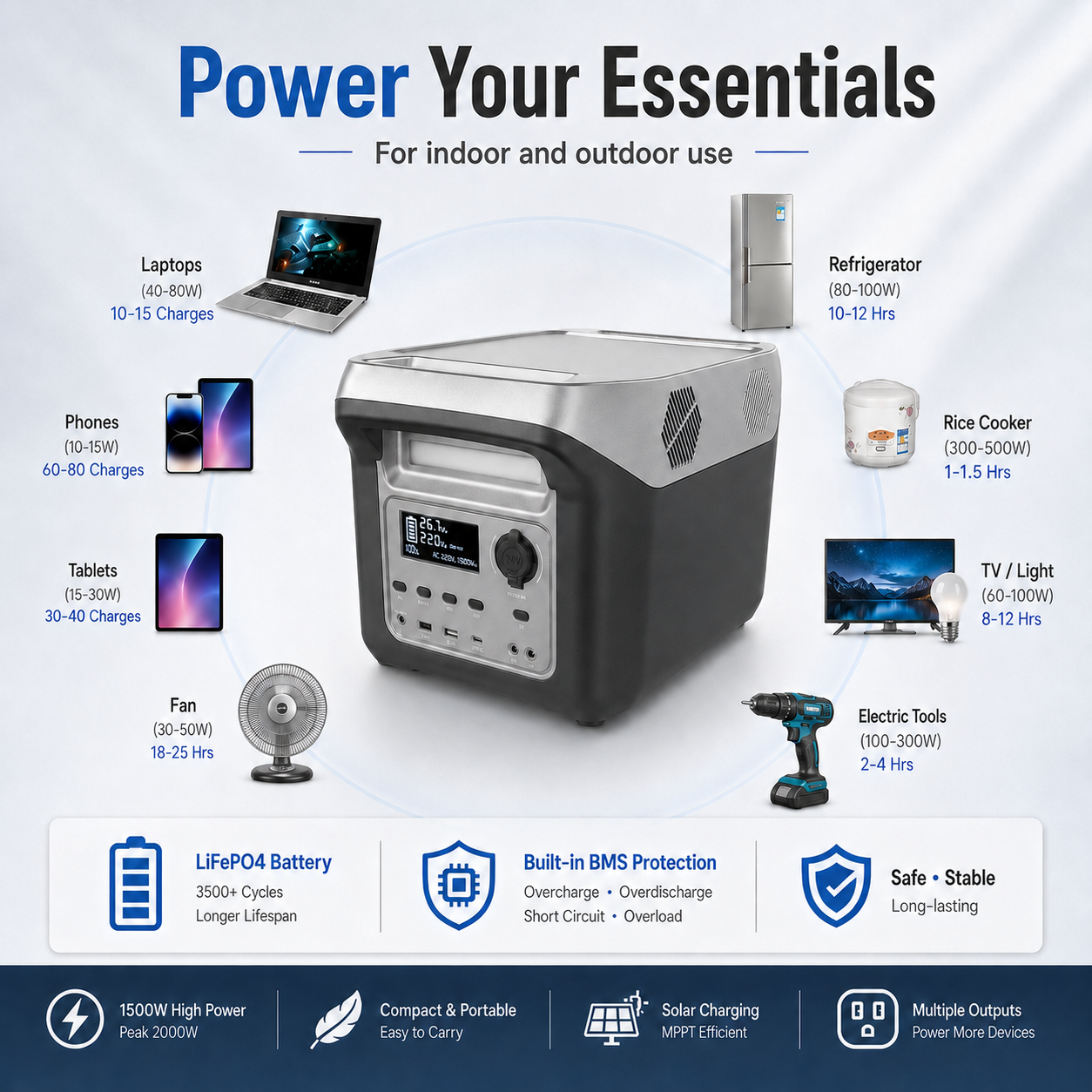

Suitable Applications

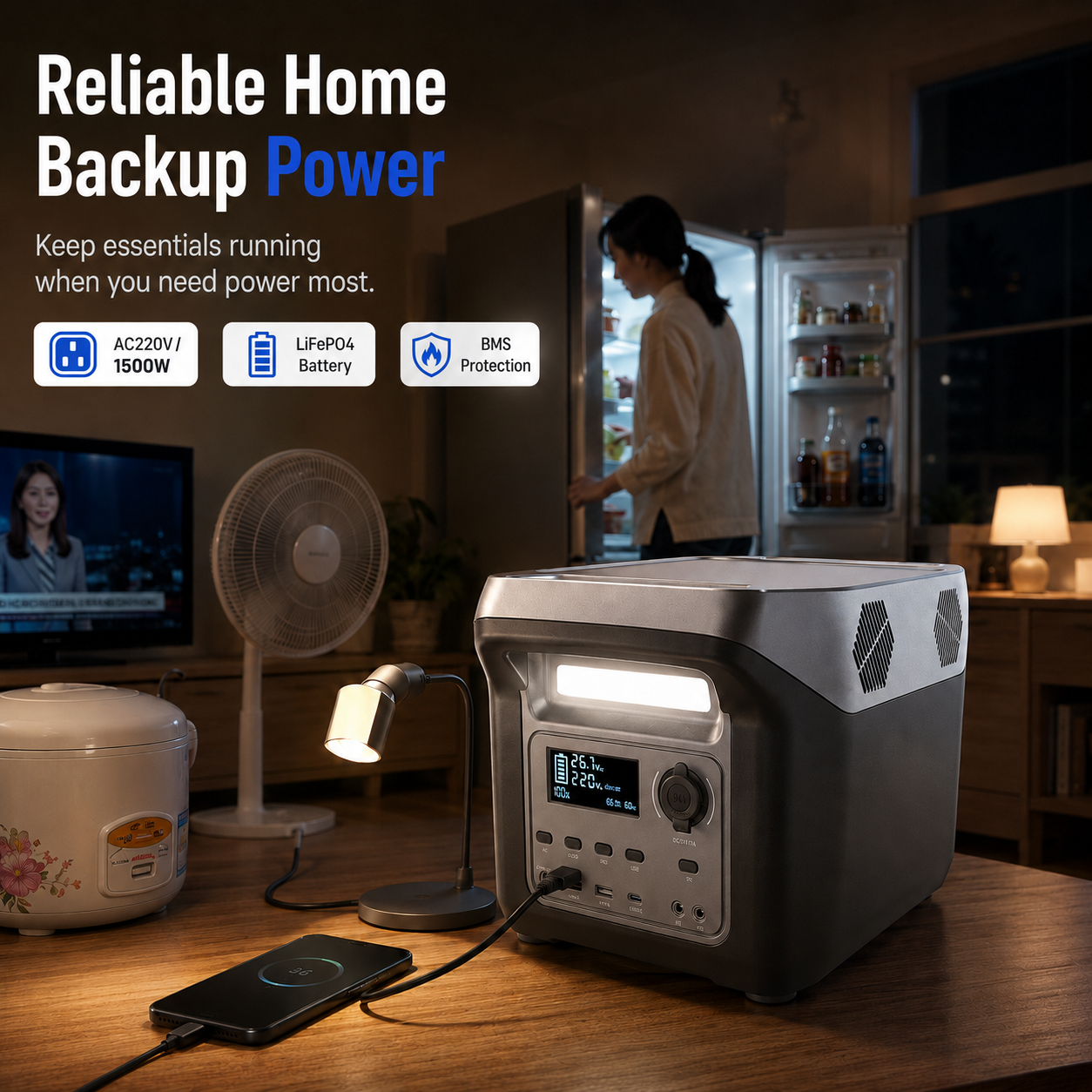

✓ Home emergency backup power

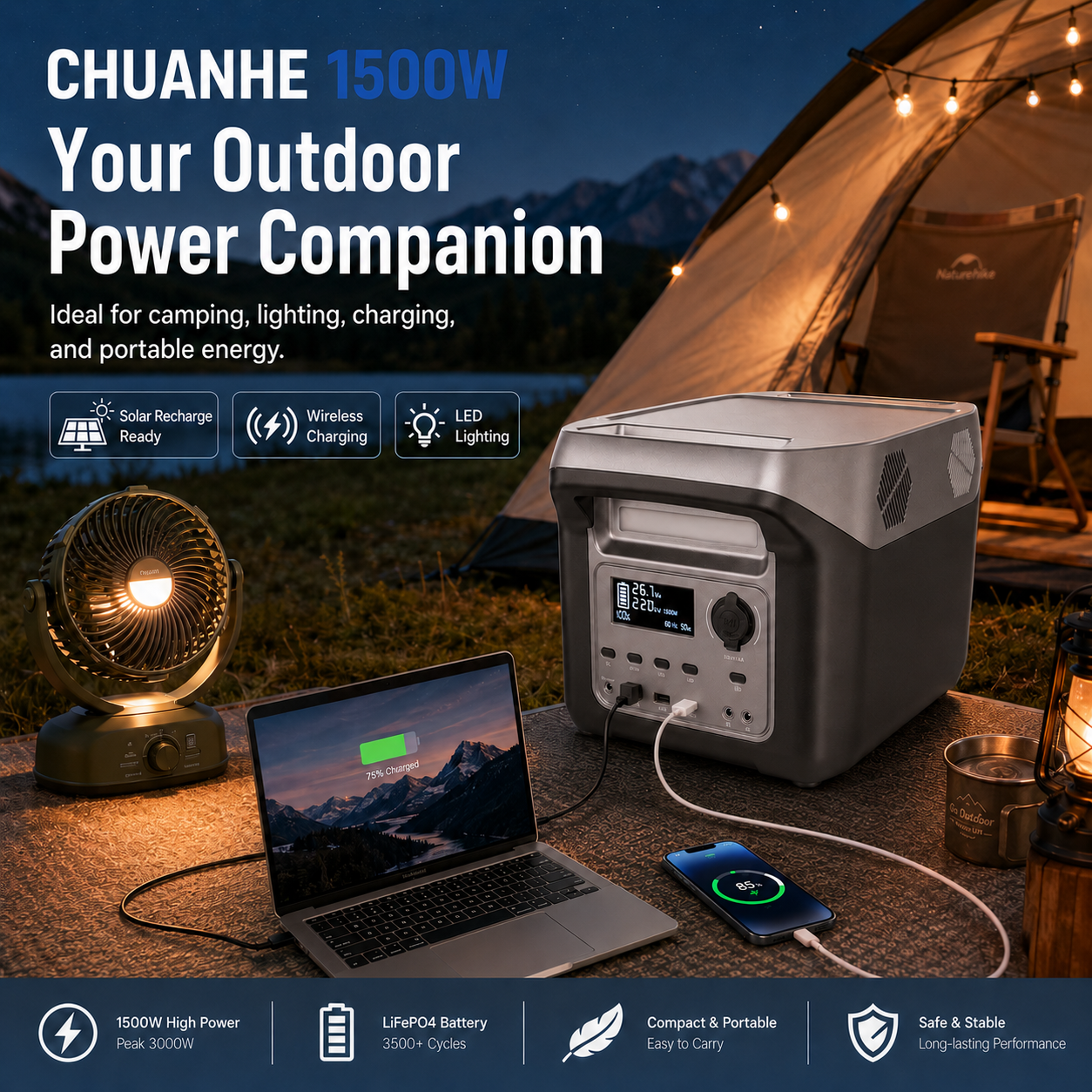

✓ Camping and outdoor activities

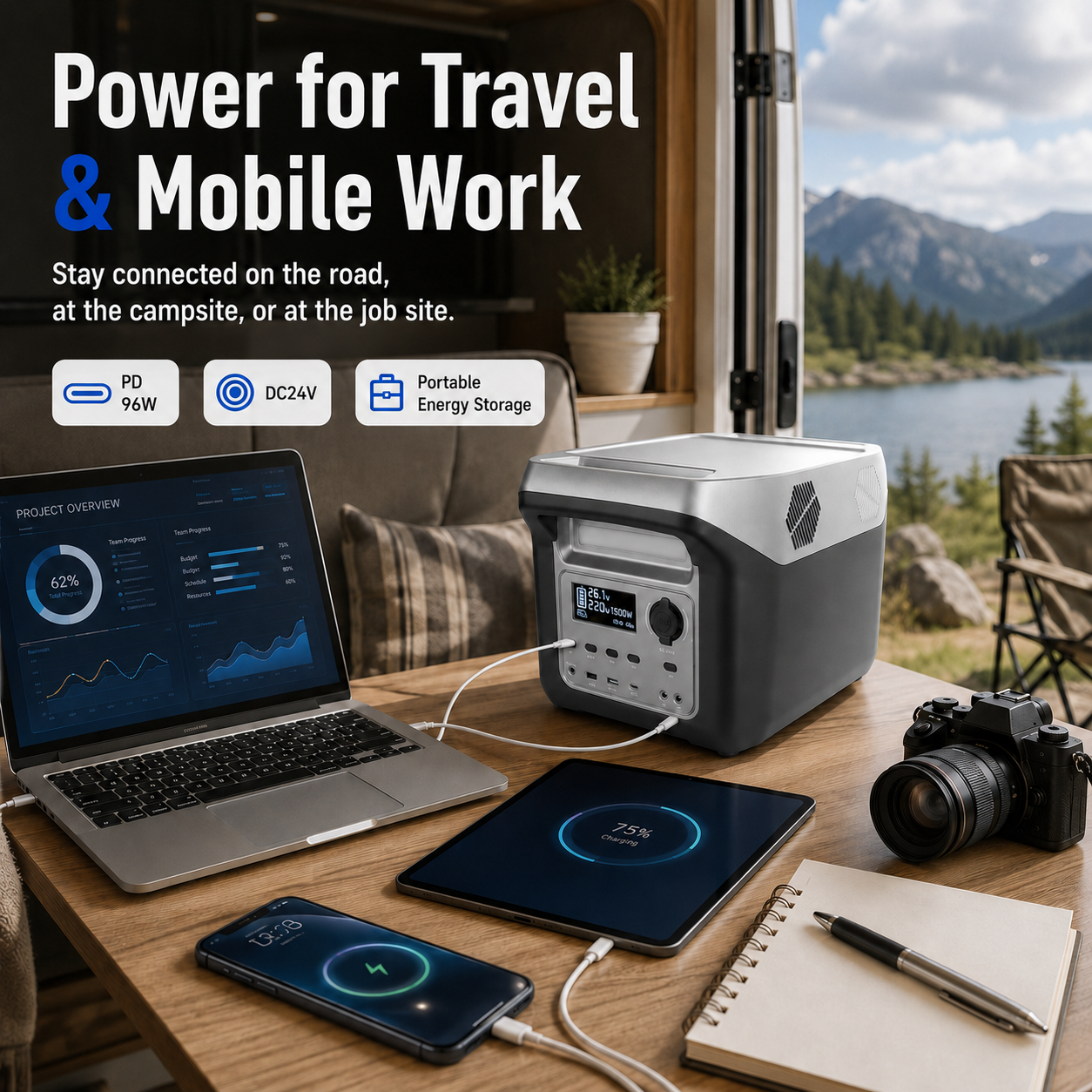

✓ RV travel and mobile living
✓ Smartphones and tablets
✓ Laptops and mobile office equipment
✓ LED lighting and speakers
✓ Fans and compatible televisions
✓ Refrigerators within the rated limit
✓ Rice cookers and kitchen appliances
✓ Compatible electric tools and field equipment
✓ DC 24V vehicle and outdoor devices
View Technical Specifications
Brand: Chuanhe
Battery Type: LiFePO4
Battery System Voltage: 25.6V
Inverter Type: Pure sine wave
Rated Inverter Power: 1500W
Rated AC Output: AC 220V / 50Hz / 1500W
Maximum PV Input Power: 300W
MPPT Input: 30–42V / 10A
Main DC Output: 24V / 10A
Dedicated Charger Input: AC 100–240V
Dedicated Charger Output: 29.2V / 5A
Wireless Charging: 15W
USB-C Output: PD 64W
USB Output: 5V / 3A
Vehicle Output: 24V / 8A
DC Ports: Two DC5521 ports, 24V / 8A
Charging Cut-off Voltage: 3.65V per cell
Nominal Cell Voltage: 3.2V per cell
Discharge Cut-off Voltage: 2.6V per cell
Charging Protection Voltage: 29.2V
Discharge Protection Voltage: 20V
BMS Protection Range: 20–29.2V / 50A
Housing Material: Fire-resistant ABS plastic
Housing Color: Dark gray and gray

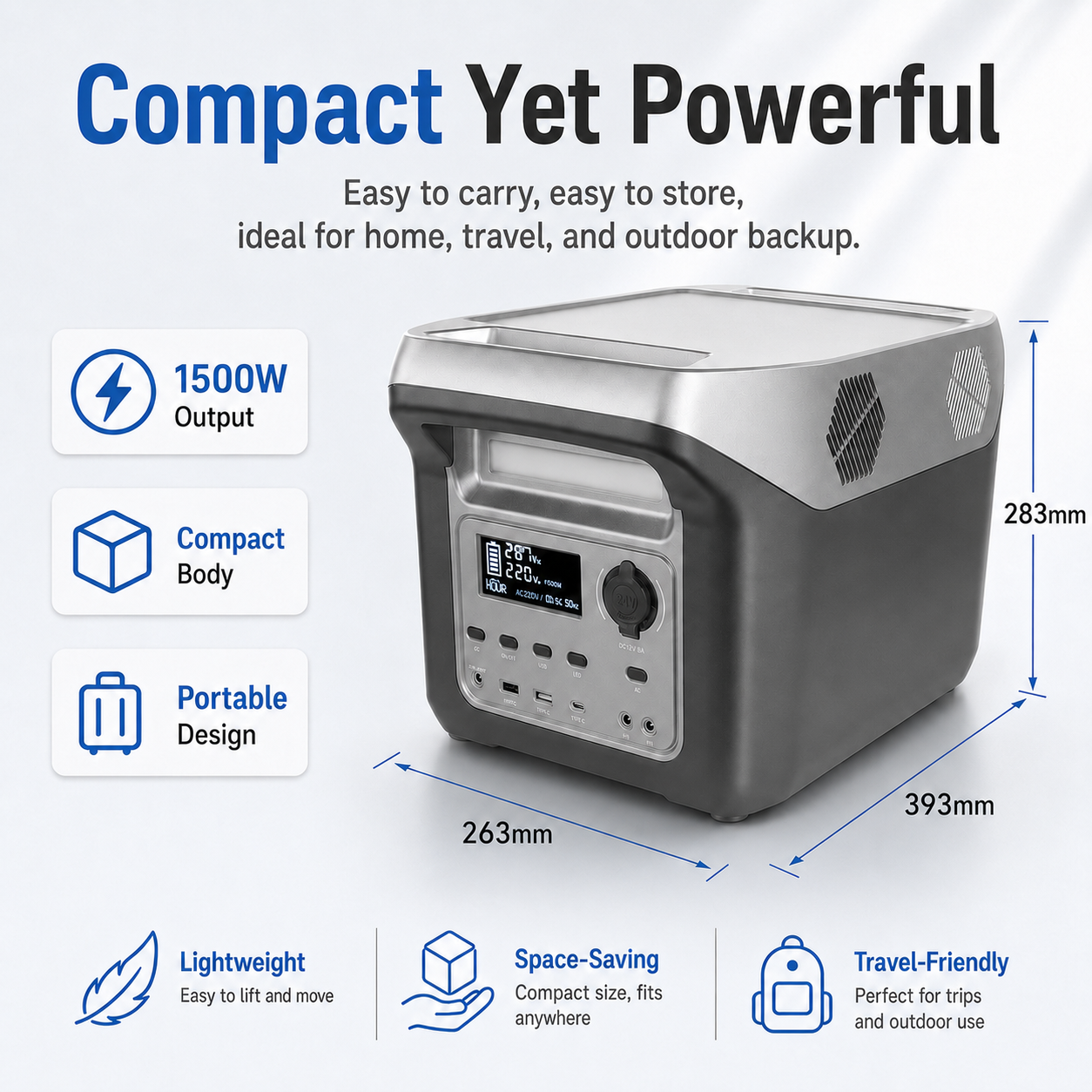

Product Size: 393 × 263 × 283mm
Battery Management & Protection
✓ Intelligent BMS battery management
✓ Charging protection
✓ Discharging protection
✓ Voltage protection
✓ Current protection
✓ Battery-status monitoring
✓ Designed to extend battery service life
Refrigerators, rice cookers, pumps, motors and electric tools may require significantly higher starting power than their normal operating power. Confirm both starting wattage and continuous wattage before connection.
CE · RoHS · FCC · UN38.3 · MSDS · Air Freight Report · Sea Freight Report
