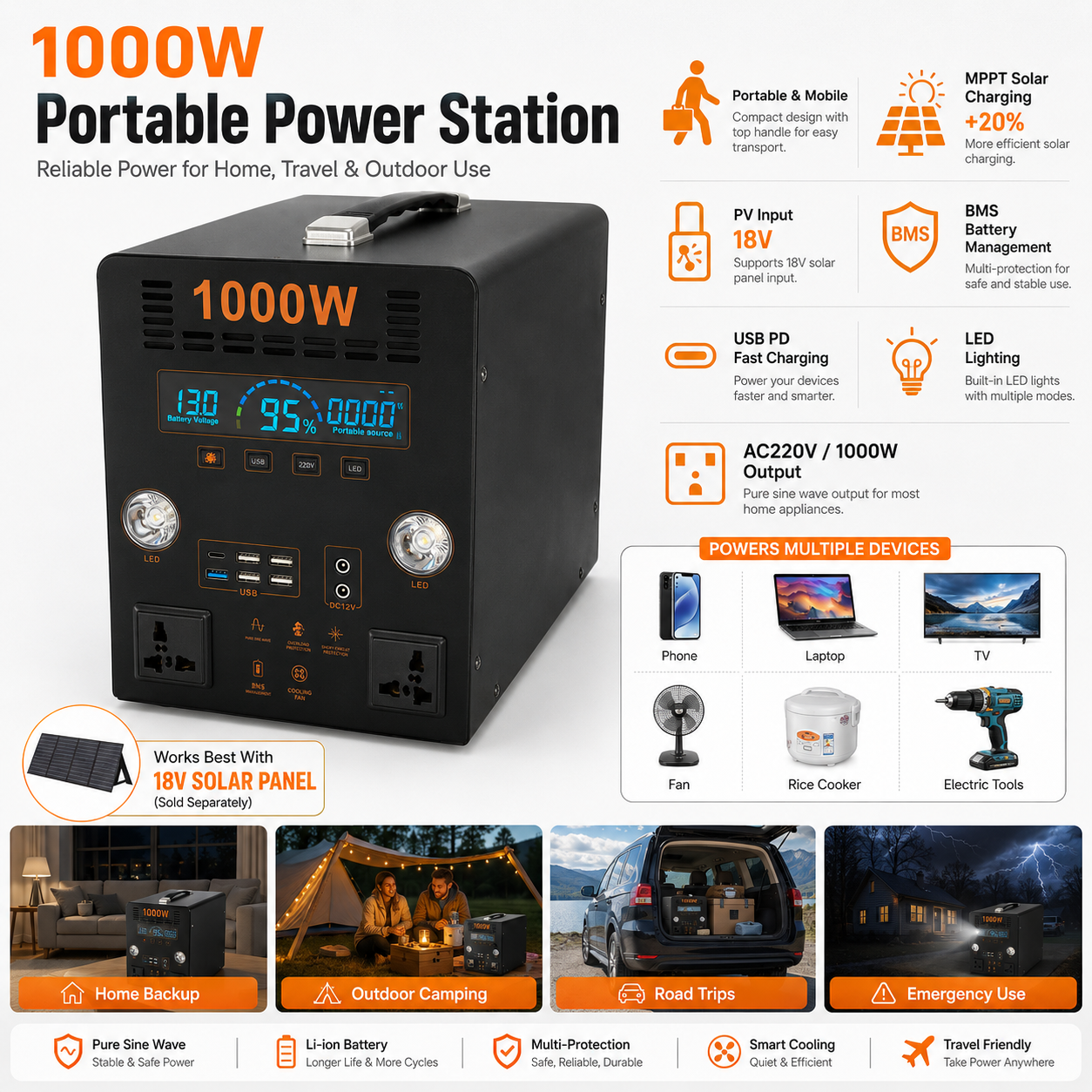

1KW Portable Power Station （B-series 700Wh-1.1KWh）
1KW Portable Power Station （B-series 700Wh-1.1KWh）
1000W Portable LiFePO4 Power Station
High-Capacity Power for Home, Travel & Outdoor Use
The XW-B10 Series is a high-capacity portable power station designed for home backup, camping, RV travel, outdoor work and emergency use. It combines a 1000W pure sine wave inverter, LiFePO4 battery, USB-C PD fast charging, multiple AC and DC outputs, LED lighting and intelligent BMS protection.
Pure Sine Wave
Battery Options
Solar Input
USB-C Charging
Key Features
Integrated carrying handle for convenient transportation, travel, camping and outdoor work.
Delivers stable AC 220V / 50Hz power for compatible electronics, appliances and electric tools.
Four capacity options are available, ranging from 665.6Wh to 1100.8Wh.

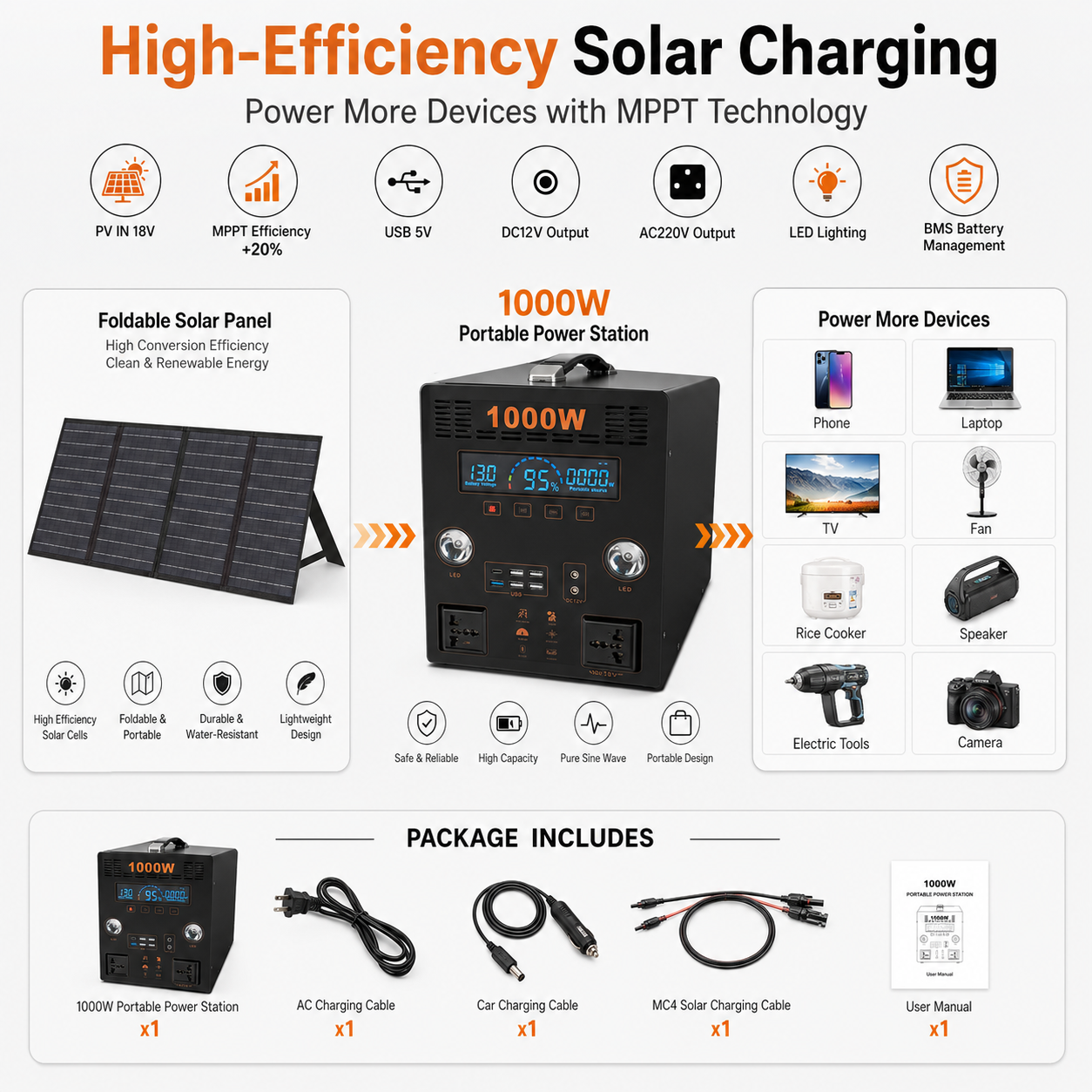

The optional MPPT tracking system can improve solar charging efficiency by up to 20%.
Supports optional photovoltaic panels up to 200W for outdoor and off-grid charging.
Helps protect against overcharging, over-discharging, overcurrent, short circuits and abnormal voltage.
Fast charging for compatible phones, tablets, laptops and other USB-C devices.
Displays battery level, voltage, output power and operating status.
Convenient lighting for camping, outdoor work, emergencies and home power outages.
Choose Your Model
12.8V / 52Ah
665.6Wh
18V / 120W
11.6kg
12.8V / 60Ah
768Wh
18V / 160W
12.8kg
12.8V / 80Ah
1024Wh
18V / 180W
13.9kg
12.8V / 86Ah
1100.8Wh
CATL Cells
18V / 200W
14.5kg
Solar panels are not included in the standard package and are priced separately. The maximum supported photovoltaic input is 18V / 200W.
The MPPT solar charging module is optional on some configurations. Please confirm the selected configuration before ordering.

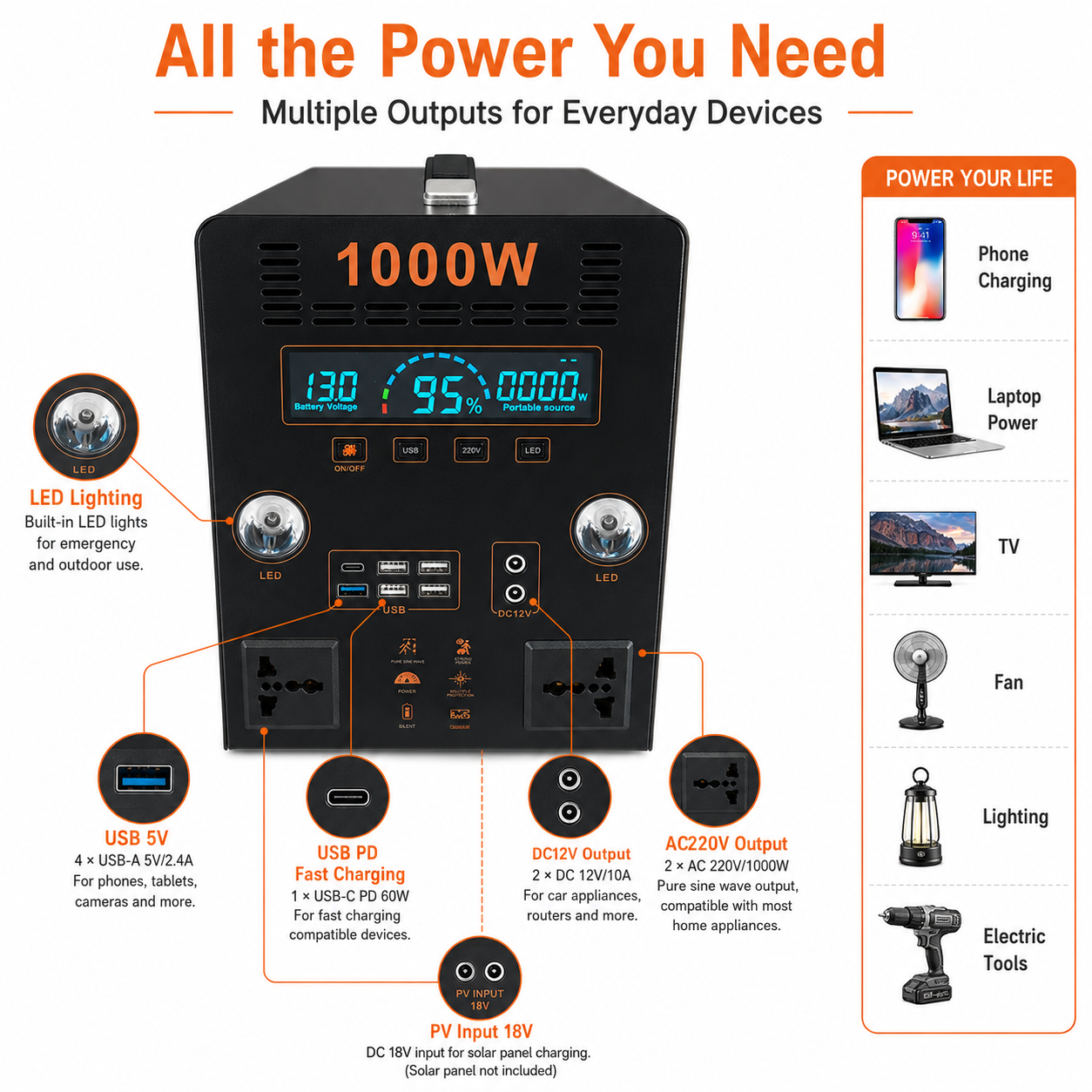

Multiple Power Outputs
220V / 1000W
50Hz
2 Outlets
PD 64W
5V / 3A
2 × DC5521
12V / 8A
18V / 200W Max
Display, Lighting & Controls
Large LCD Display
Displays battery capacity, input voltage, output power
and system operating information.
Built-in LED Lighting
Provides convenient lighting for camping, outdoor work
and emergency situations.
Independent AC, DC & LED Switches
Separate switches allow convenient control of the AC output,
DC output and LED lighting.
View Technical Specifications
Battery Type: LiFePO4
Inverter Type: Pure sine wave
Rated Inverter Power: 1000W
Rated AC Output: AC 220V / 50Hz / 1000W
AC Outlets: 2
Maximum Solar Input: 18V / 200W
Optional MPPT Input: 15–24V / 10A
DC Output: 2 × DC 12V / 8A
DC Interface: DC5521
USB-C Output: Type-C 3.0 / PD 64W
USB Output: 5V / 3A
Charging Cut-off Voltage: 3.65V per cell
Nominal Cell Voltage: 3.2V per cell
Discharge Cut-off Voltage: 2.3V per cell
BMS Protection Range: 9.2–14.6V / 100A
Dedicated Charger Input: AC 100–240V
Dedicated Charger Output: 14.6V / 5A
Charging Interface: DC5521
Housing: Metal housing with black front panel and orange accents
Product Size: 323 × 193 × 263mm
Package Size: 430 × 265 × 325mm

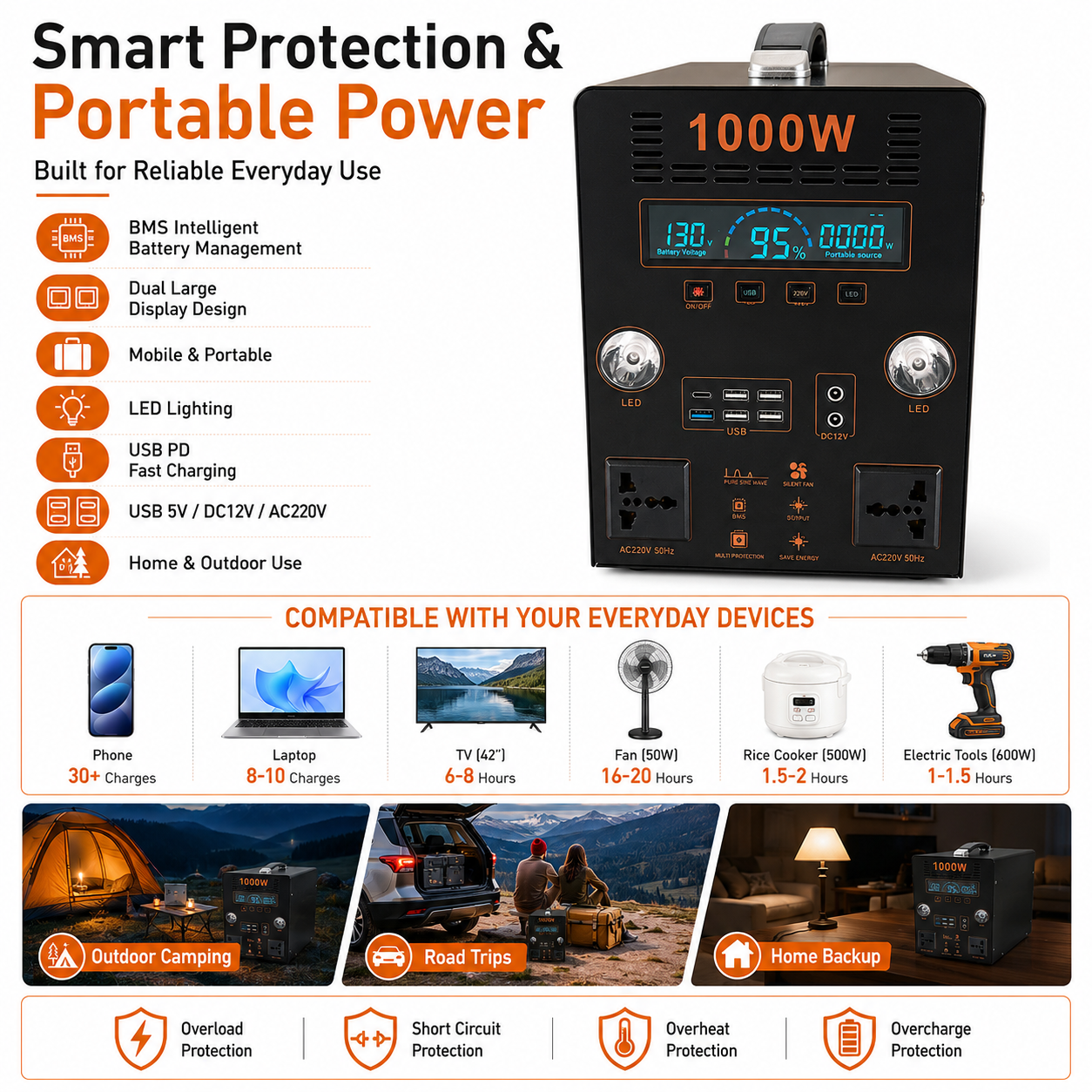

Safety Protection
✓ Intelligent BMS battery management
✓ Overcharge protection
✓ Over-discharge protection
✓ Overcurrent protection
✓ Short-circuit protection
✓ Overvoltage protection
✓ Temperature protection
Suitable Applications
✓ Home emergency backup
✓ Outdoor camping and RV travel
✓ Smartphone and tablet charging
✓ Laptop and computer power
✓ Emergency and outdoor lighting
✓ Portable speakers
✓ Electric fans
✓ TVs and compatible displays
✓ Rice cookers and small appliances
✓ Compatible electric tools
CE · RoHS · FCC · UN38.3 · MSDS · Air Freight Report · Sea Freight Report
