500W Portable Power Station (A series 320-800Wh)

500W Portable LiFePO4 Power Station

Portable Power for Home, Travel & Outdoor Use

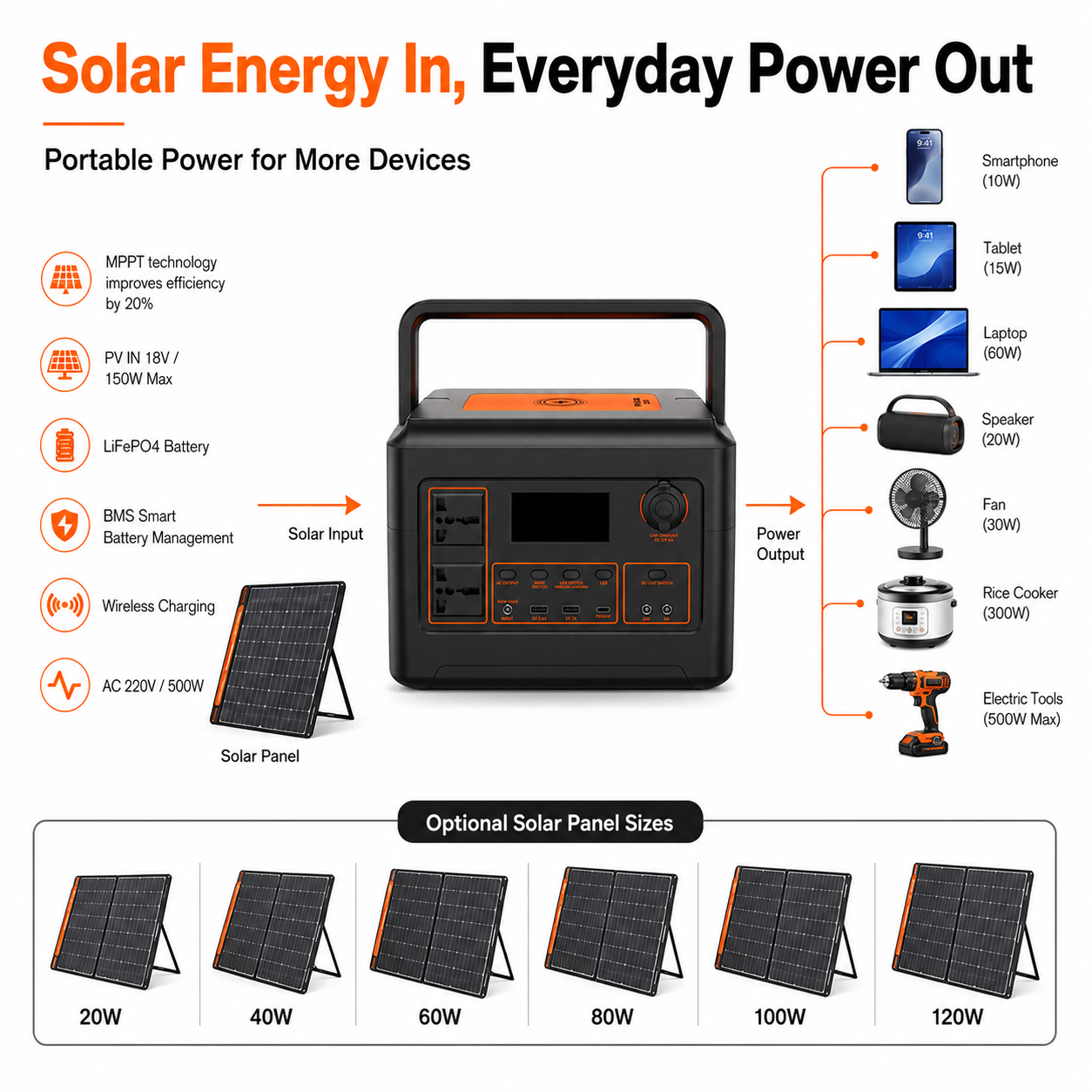

The Xingwei portable energy storage power station provides reliable electricity for home backup, camping, travel and outdoor activities. It features a 500W pure sine wave inverter, LiFePO4 battery, MPPT solar charging, wireless charging and multiple output ports.

Key Features

✓ 500W Pure Sine Wave Output
Stable AC power for electronic devices and small appliances.

✓ Long-Life LiFePO4 Battery
Approximately 3,000 cycles and a service life of 4–8 years.

✓ Advanced MPPT Solar Charging
Improves solar power generation efficiency by up to 20%.

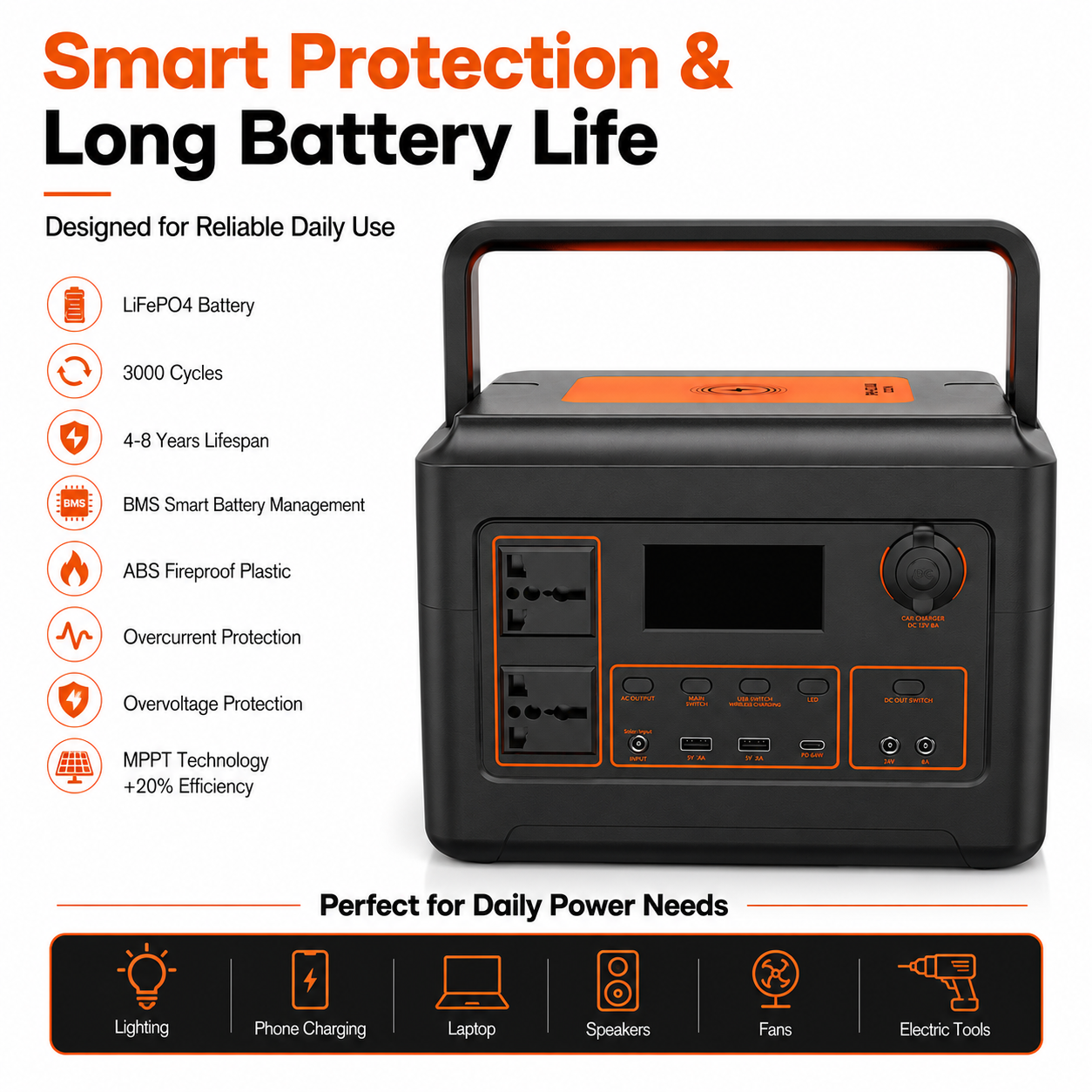

✓ BMS Intelligent Battery Management
Provides multiple safety protections and helps extend battery life.

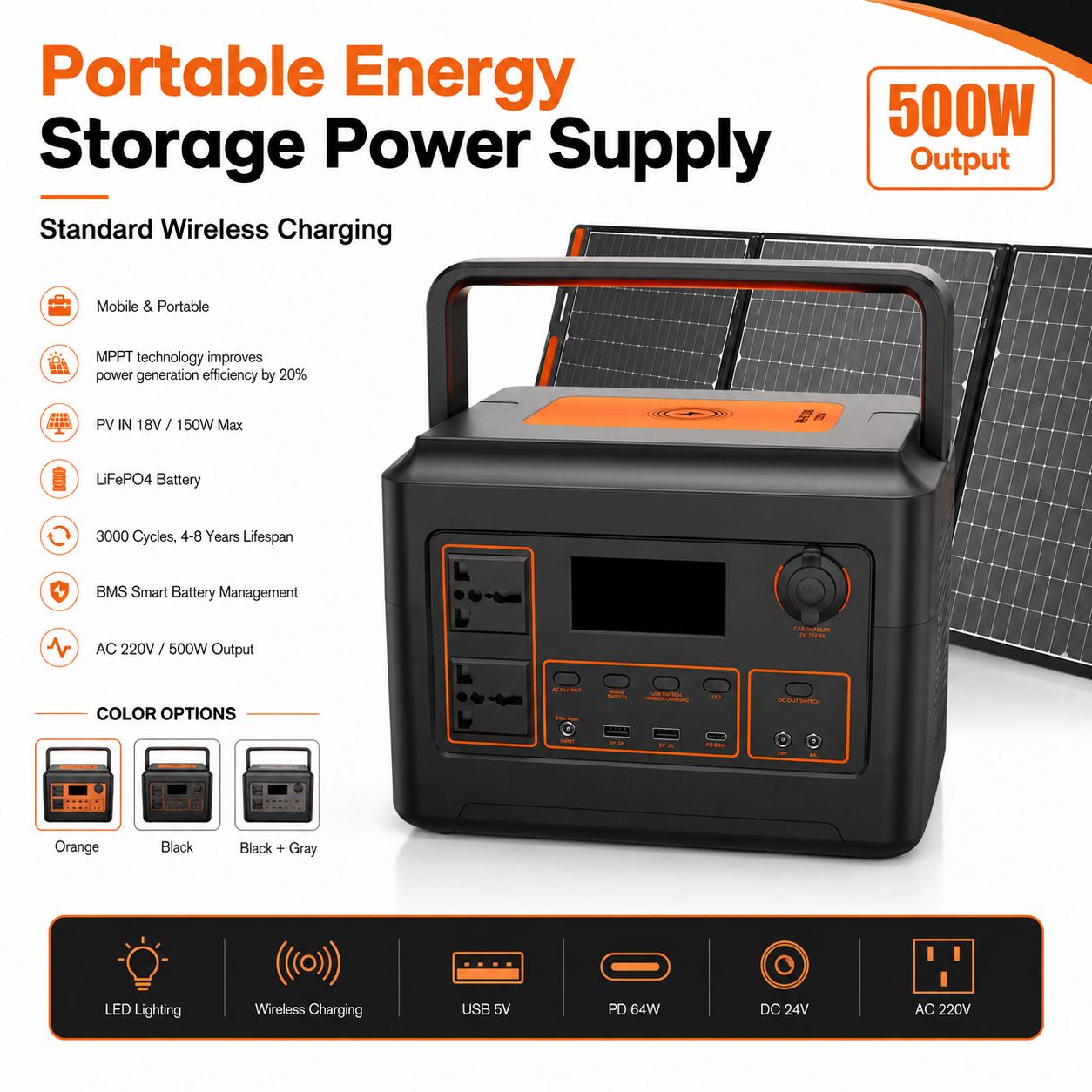

✓ Standard Wireless Charging
Place a compatible smartphone on top for convenient cable-free charging.

✓ ABS Fire-Resistant Housing
Available in orange, black and black + gray.

✓ Portable Carrying Design
Integrated handle for camping, travel and emergency use.

Multiple Power Outputs

AC Output
AC 220V / 500W

USB Output
5V / 3A

USB-C Output
PD 64W

Vehicle Output
12V / 8A

DC Output
24V / 8A × 2

Wireless Charging
Up to 15W

Choose Your Model

XW-A0525

Battery: 12.8V / 25Ah

Energy: 320Wh

Recommended Solar Panel: 18V / 60W

Weight: 4.8kg

XW-A0530

Battery: 12.8V / 30Ah

Energy: 384Wh

Recommended Solar Panel: 18V / 100W

Weight: 5.7kg

XW-A0540

Battery: 12.8V / 40Ah

Energy: 512Wh

Recommended Solar Panel: 18V / 120W

Weight: 6.9kg

XW-A0560

Battery: 12.8V / 60Ah

Energy: 768Wh

Recommended Solar Panel: 18V / 150W

Weight: 8.3kg

Important: The solar panel is optional and is not included unless selected separately.

View Technical Specifications

Inverter Type: Pure sine wave

Rated AC Output: AC 220V / 50Hz / 500W

Maximum PV Input: 18V / 150W

MPPT Input: DC 15–23V / 10A

Dedicated Charger: AC 100–240V, 12V / 10A

LiFePO4 Cell Nominal Voltage: 3.2V

Charging Cut-off Voltage: 3.65V per cell

Discharge Cut-off Voltage: 2.6V per cell

BMS Protection: 9.2–14.6V / 50A

DC5521 Ports: 2

AC Outlets: 2

Controls: Independent AC and DC switches

Product Size: 295 × 205 × 225mm or 340 × 250 × 315mm, depending on model

LCD Display & LED Lighting

The LCD screen displays battery level, charging and discharging power, AC load power and DC load power.

The built-in LED light supports daily lighting. Double-click the LED switch to activate the red-and-blue emergency flashing mode.

Suitable Applications

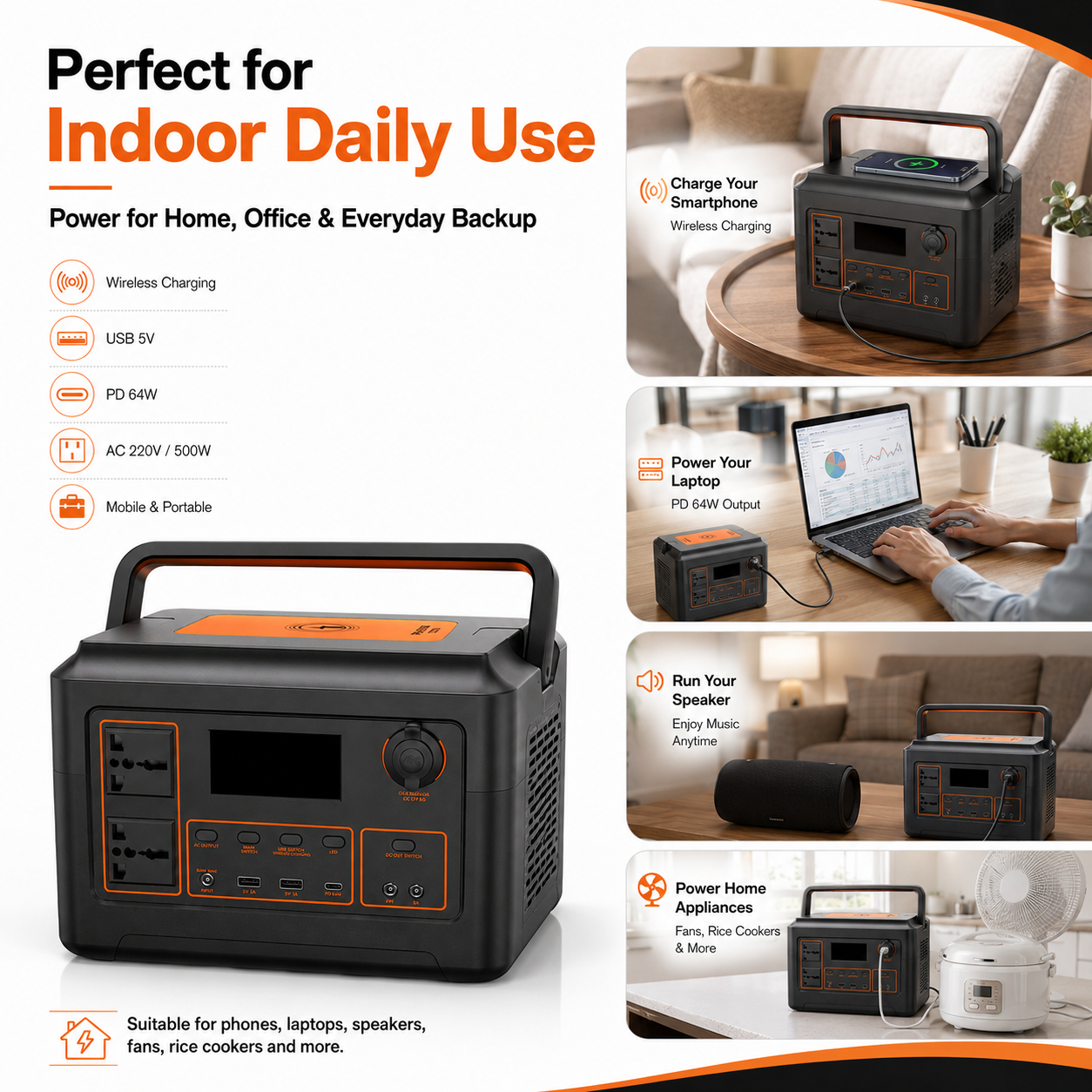

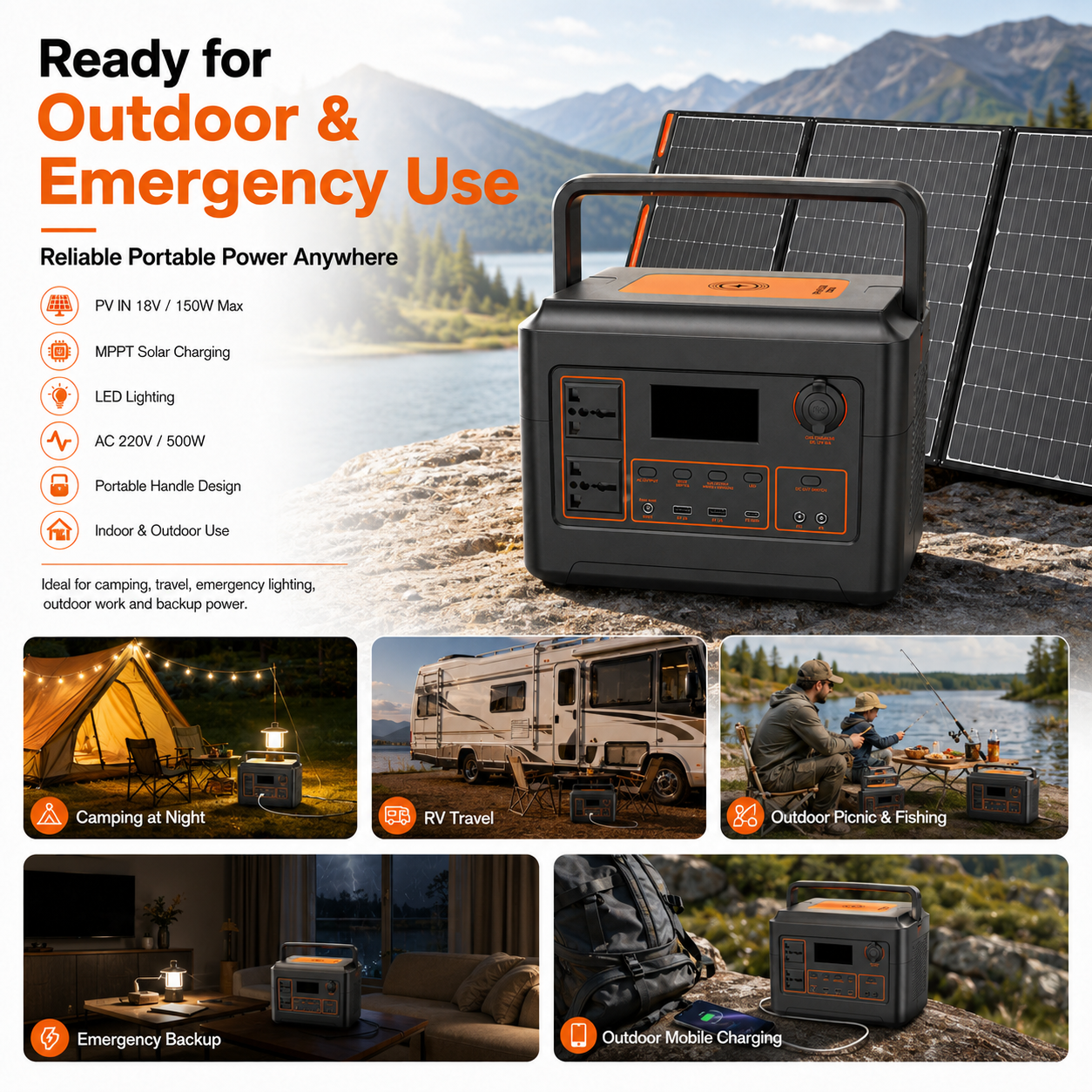

Ideal for home emergency backup, camping, RV travel, outdoor lighting, smartphone charging, laptops, speakers, fans, TVs, rice cookers and compatible electric tools.

Certifications & Transport Documents

CE · RoHS · FCC · UN38.3 · MSDS · Air Freight Report · Sea Freight Report
