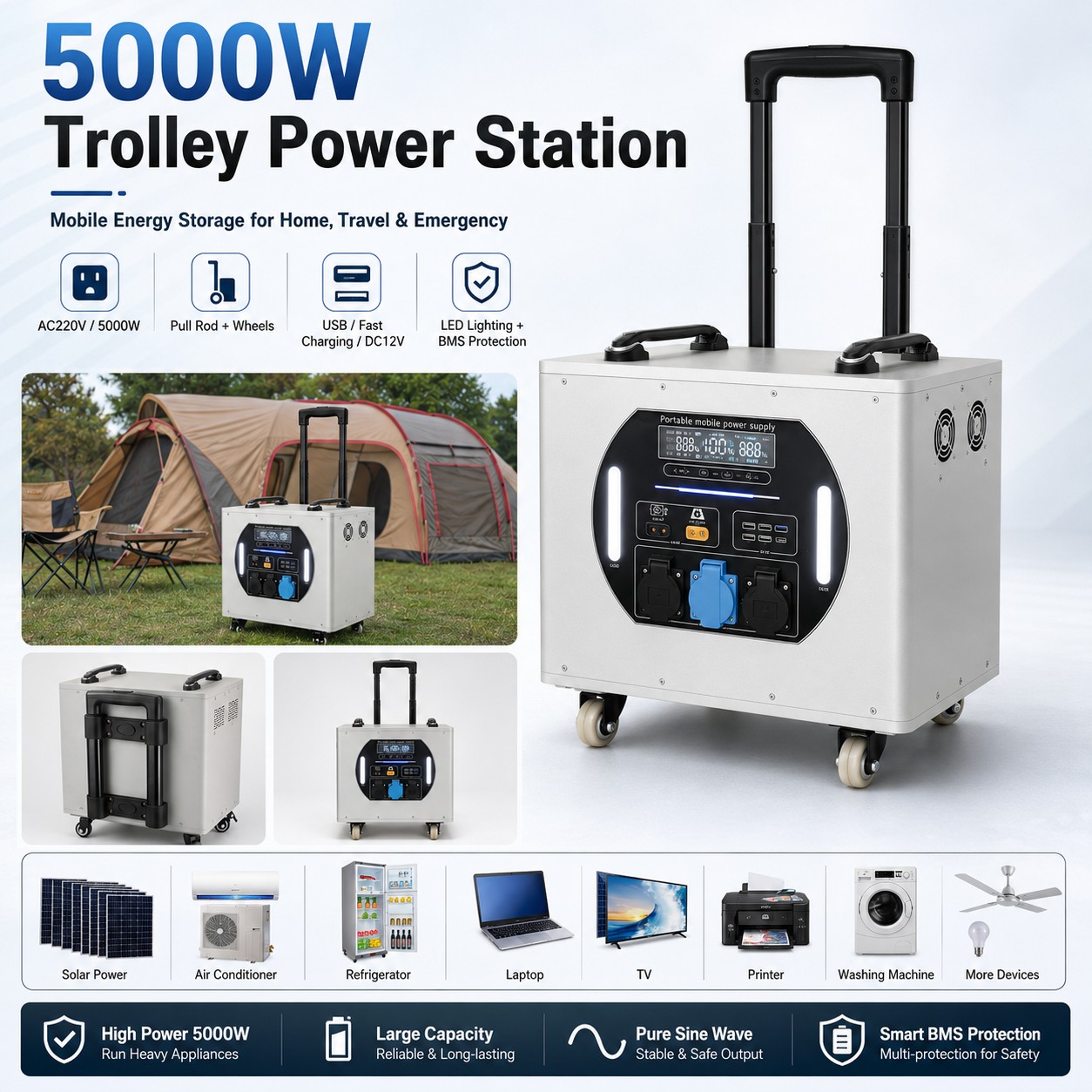

5KW trolley box energy storage mobile power station (LA series 4.096-8.038KWh)
5KW trolley box energy storage mobile power station (LA series 4.096-8.038KWh)
5000W Portable LiFePO4 Power Station
Mobile Energy Storage for Home Backup, Travel, Outdoor Work & Emergency Use
The XW-LA50 Series is a high-capacity trolley-style energy storage power station designed for convenient indoor and outdoor power supply.
It combines a large LiFePO4 battery, pure sine wave AC output, MPPT solar charging, intelligent BMS protection, USB-C fast charging, multiple USB and DC outputs, LED lighting, a large LCD display, telescopic pull rod and rolling wheels.
Key Features
Equipped with a telescopic pull rod, caster wheels and dual top handles for easier transportation, positioning and storage.
Available in 4096Wh, 6016Wh and 8038.4Wh configurations for different backup-time and power requirements.
Provides stable AC 220V / 50Hz output for compatible household appliances, electronics, mobile work equipment and emergency loads.
Supports 29–45V photovoltaic input through an XT90 interface for compatible off-grid solar charging systems.
The intelligent battery management system supports balanced charging and discharging and helps protect battery operation.

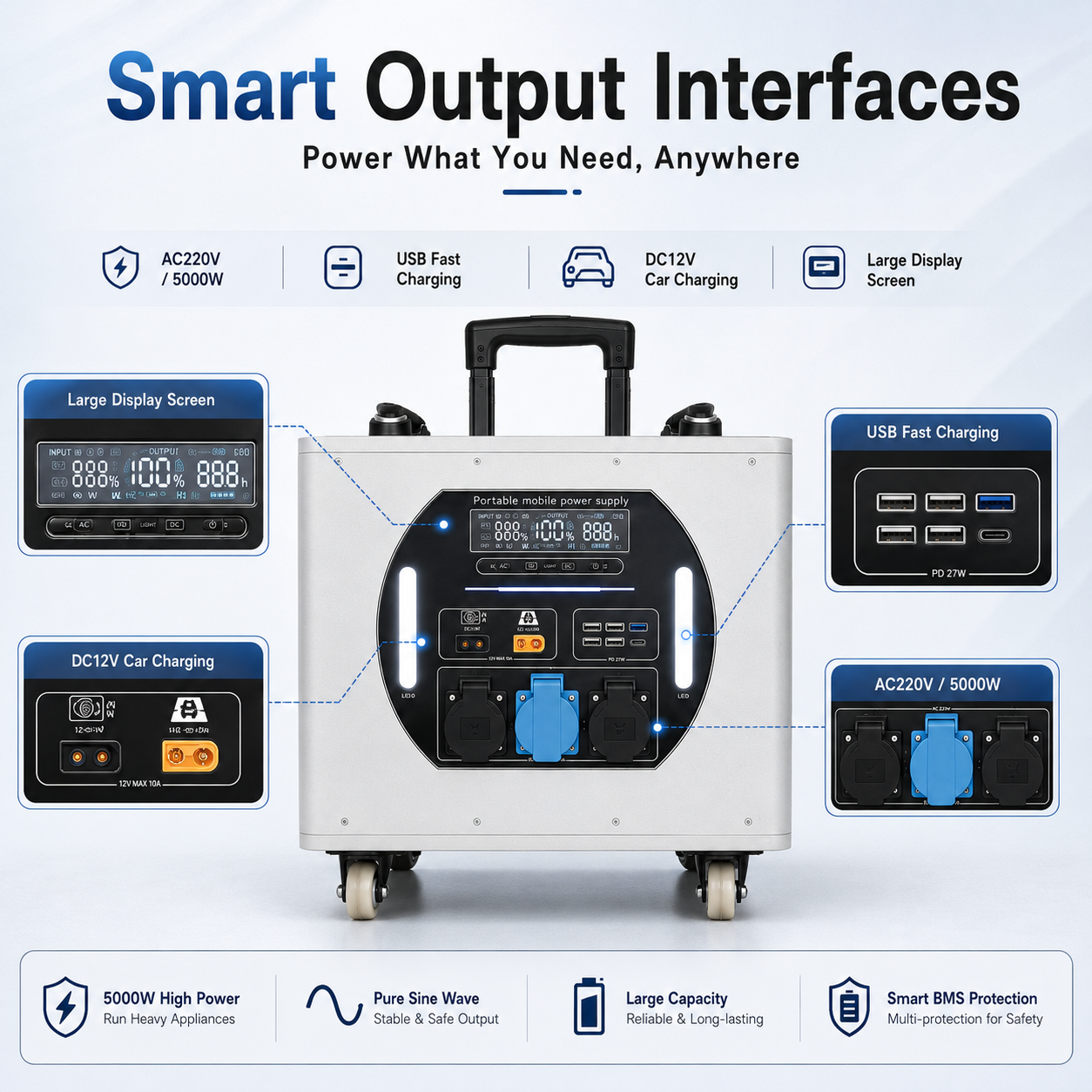

Displays battery status, charging information, output conditions and operating data in real time.
Integrated socket design supports compatible European-standard and world-universal plugs.
Supports USB-C PD 18W and 42W charging for compatible smartphones, tablets, laptops and portable electronics.
Includes five USB 5V / 3A ports and two DC5521 12V output ports for charging and powering multiple devices.
Built-in LED and ambient lighting provide convenient illumination for camping, emergency situations and low-light work areas.
Frosted white/silver metal housing with a black control panel provides a modern, durable and professional appearance.
Choose Your Model
25.6V / 160Ah
4096Wh
42V / 800W
55kg
25.6V / 235Ah
6016Wh
42V / 1000W
65kg
25.6V / 314Ah
8038.4Wh
42V / 1500W
75kg
Solar panels are not included in the standard package. Compatible photovoltaic panels, charging cables and accessories are optional and priced separately.
Power & Charging
LiFePO4
25.6V
220V / 50Hz
5000W
29–45V / 40A
XT90
AC 180–240V
29.2V / 20–40A
PD 18W / 42W
5V / 3A
5 Ports
DC12V × 2

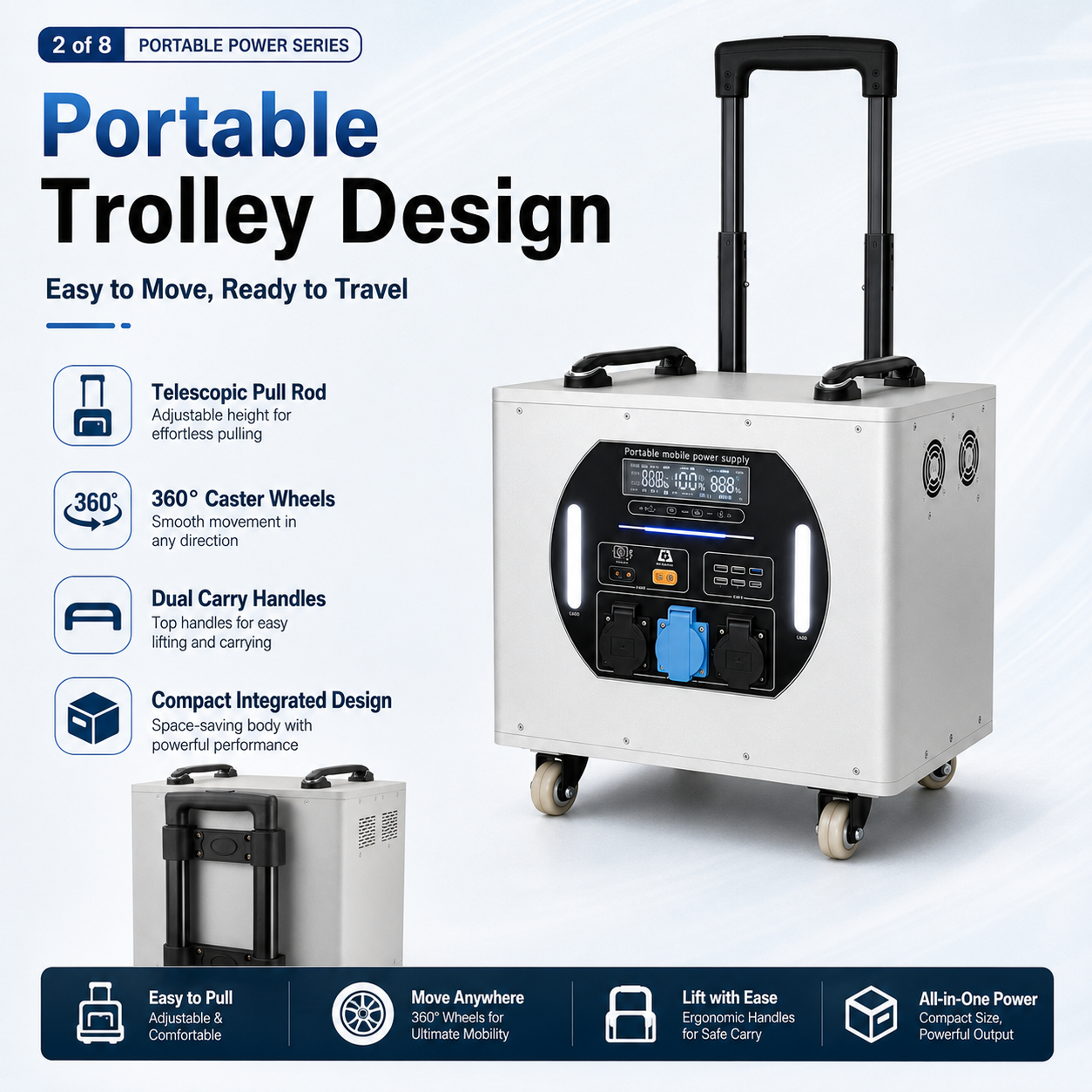

Mobile Trolley Design
Telescopic Pull Rod
Allows the power station to be moved like travel luggage.
Rolling Caster Wheels
Improve mobility across homes, warehouses, campsites and work areas.
Dual Top Handles
Assist with lifting, loading and positioning the power station.
All-in-One Structure
The battery, inverter, charging system, display and output interfaces are integrated into one mobile energy storage unit.
Suitable Applications
✓ Home emergency backup power
✓ Outdoor camping and RV travel
✓ Mobile offices and communication equipment
✓ Smartphones, tablets and laptops
✓ LED lighting and speakers
✓ Fans, televisions and refrigerators
✓ Rice cookers and kitchen appliances
✓ Washing machines and compatible appliances
✓ Printers and office equipment
✓ Compatible electric tools
✓ Outdoor maintenance and mobile work
✓ Earthquake, rescue and emergency support
View Technical Specifications
Product Series: XW-LA50
Battery Type: LiFePO4
Battery System Voltage: 25.6V
Rated AC Output: AC 220V / 50Hz
Maximum Listed Output: 5000W
MPPT Input: 29–45V / 40A
MPPT Interface: XT90
Charger Input: AC 180–240V
Charger Output: 29.2V / 20–40A
Charger Interface: XT90
USB-C Output: PD 18W / 42W
USB Output: 5V / 3A
USB Ports: 5
DC Outputs: DC12V DC5521 × 2
Charging Cut-off Voltage: 3.65V per cell
Nominal Cell Voltage: 3.2V per cell
Discharge Cut-off Voltage: 2.5V per cell
BMS Protection Range: 19.8–29.2V / 250A
Controls: Independent AC, DC, USB and LED switches
Display: Large LCD monitoring display
Lighting: LED lighting and ambient lights
Socket Options: European-standard and universal sockets
Housing: Frosted metal housing with black control panel
Mobility: Telescopic pull rod, dual handles and wheels
Product Size: 430 × 350 × 415mm
Package Size: 550 × 420 × 490mm

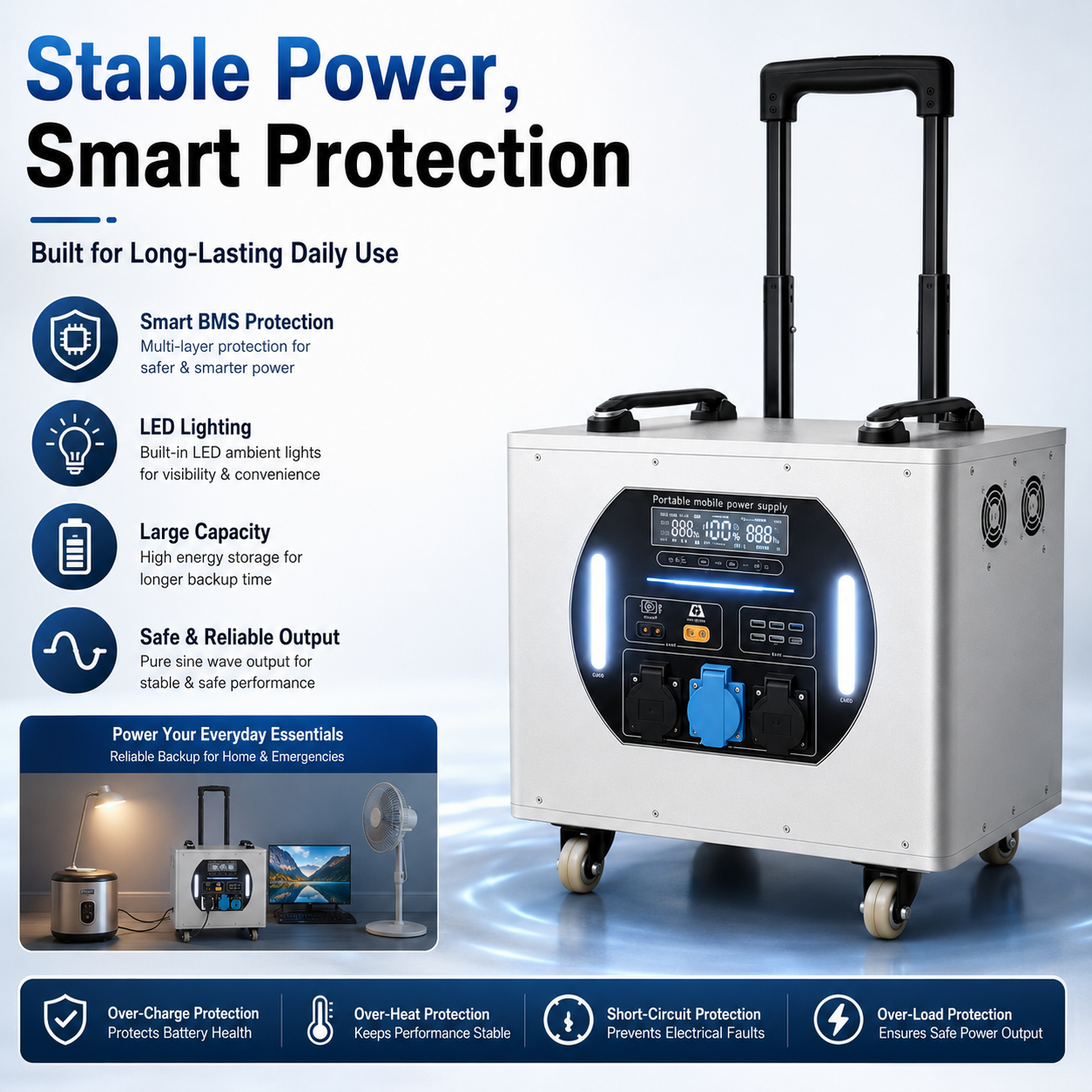

Battery Management & Protection
✓ Intelligent BMS battery management
✓ Balanced charging protection
✓ Balanced discharging protection
✓ Over-current protection
✓ Over-voltage protection
✓ Low-voltage protection
✓ Over-temperature protection
✓ Short-circuit protection
✓ Designed to extend battery service life
Air conditioners, refrigerators, washing machines, pumps, compressors, motors and power tools may require higher starting power than their normal operating power. Check both starting wattage and continuous wattage before use.
Actual operating time depends on the selected battery capacity, connected load, starting surge, temperature, charging condition and inverter efficiency.
CE · RoHS · FCC · UN38.3 · MSDS · Air Freight Report · Sea Freight Report
