600W Portable Energy Storage Power Station
Compact Backup Power for Home, Camping & Travel

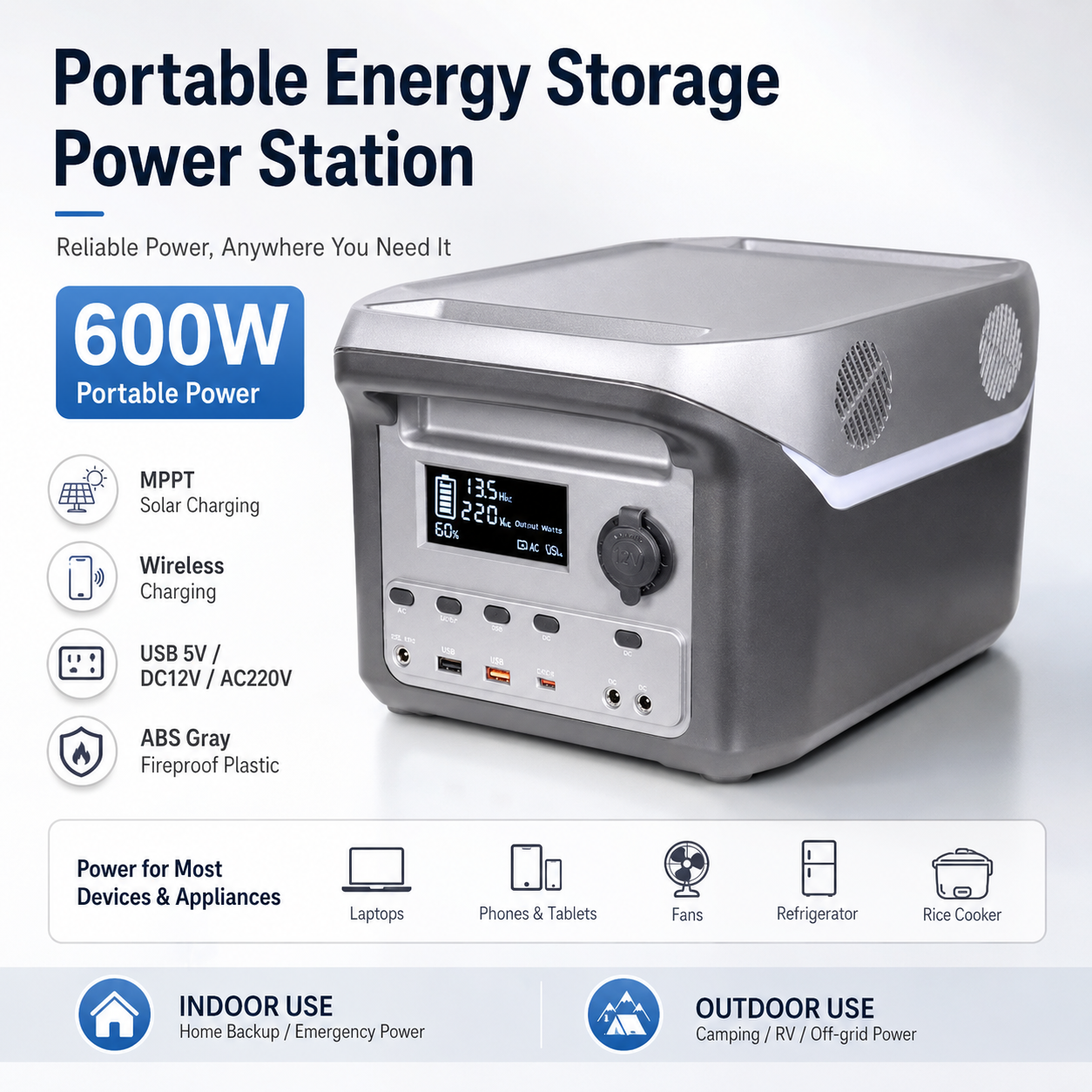

The XW-FA06 Series is a compact portable energy storage power station designed for indoor backup power, camping, travel, mobile work and emergency use.
It combines a 600W pure sine wave inverter, LiFePO4 battery, MPPT solar charging, intelligent BMS protection, wireless charging, USB, USB-C, DC 12V and AC 220V output in one portable unit.
Pure Sine Wave
Capacity Options
Solar Input
USB-C Charging
Key Features
Compact housing makes the power station convenient for home use, travel, camping and emergency backup.
Durable gray ABS housing provides a clean appearance and improved protection for daily indoor and outdoor use.
Provides stable AC 220V / 50Hz output for compatible electronics and small household appliances.

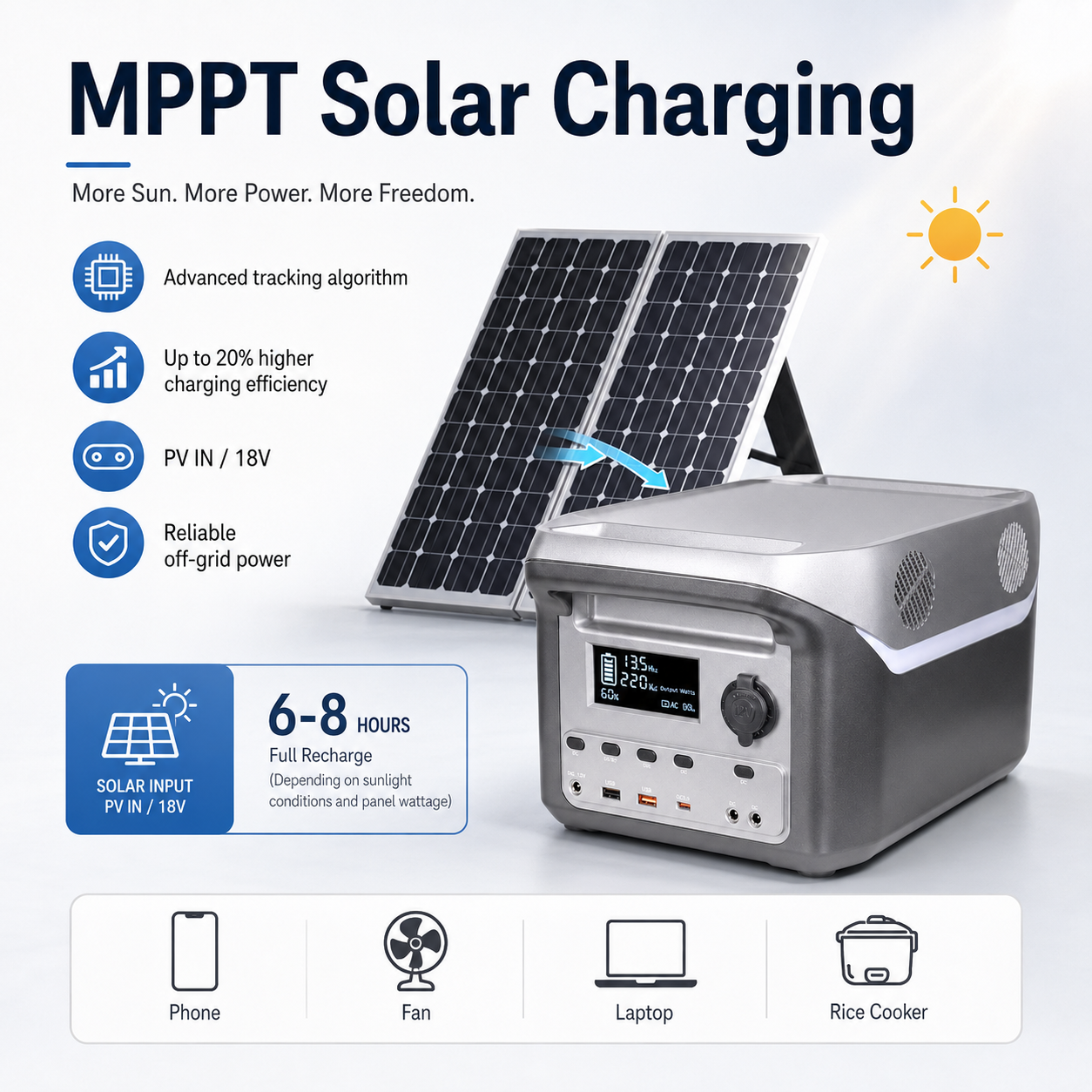

The advanced MPPT tracking algorithm can improve photovoltaic charging efficiency by up to 20%.
Intelligent battery management helps protect the battery during charging and discharging and supports longer battery service life.
Displays battery status, voltage, charging information and power-station operating information.
Conveniently charge compatible Qi-enabled smartphones without connecting a charging cable.

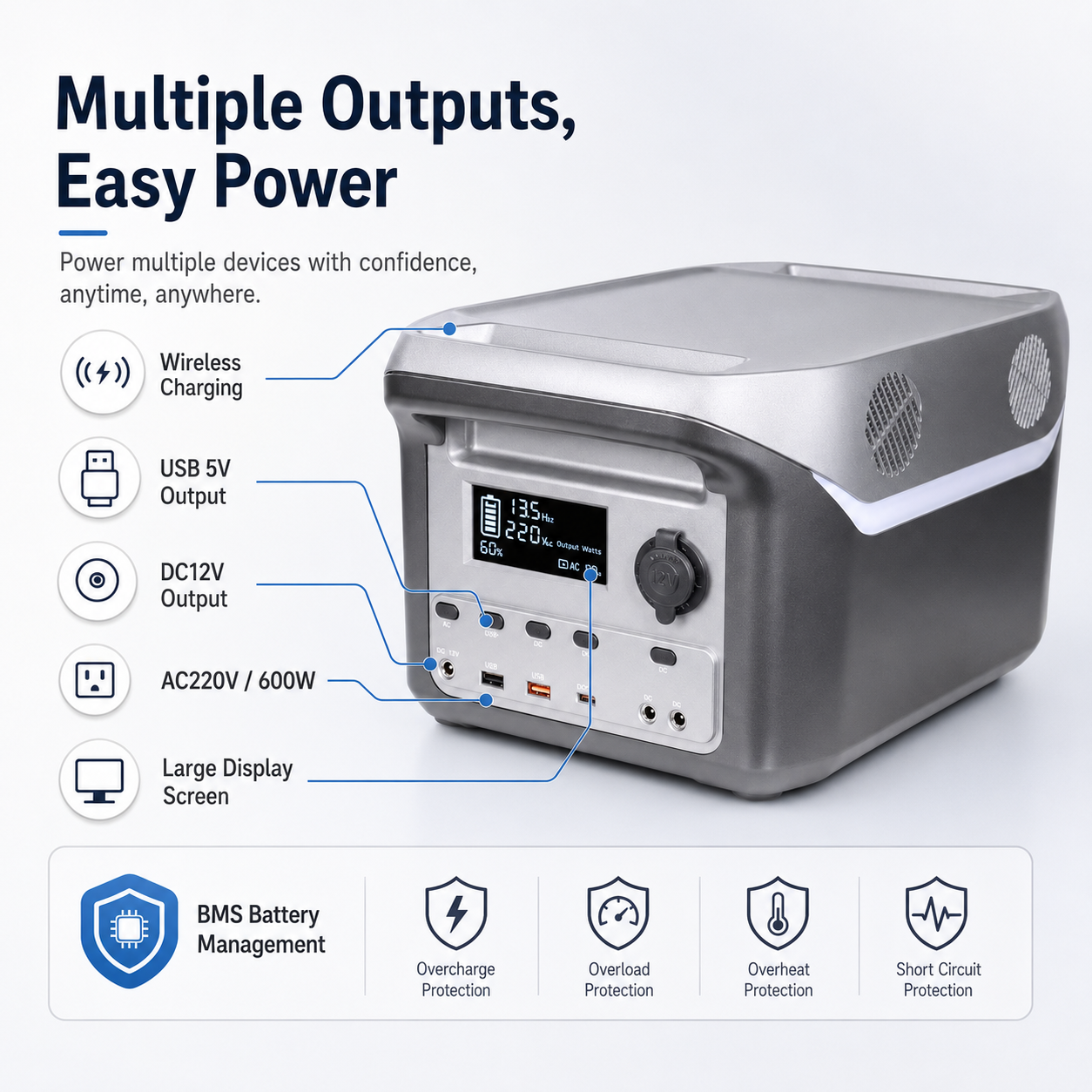

Supports AC 220V, DC 12V, USB, USB-C PD charging and built-in LED lighting.
Suitable for mobile-phone charging, laptops, lighting, speakers, fans, TVs, rice cookers and compatible electric equipment.
Choose Your Model
12.8V / 20Ah
256Wh
600W
4.5kg
12.8V / 30Ah
384Wh
600W
5.7kg
12.8V / 43Ah
550.4Wh
600W
6.8kg
Solar panels are not included in the standard package. Compatible solar panels, cables and accessories are optional and priced separately.
Power & Charging
220V / 600W
50Hz
Pure Sine Wave
18V / 150W Max
14.6–24V / 10A
12V / 8A
PD 18W
5V / 2A
Suitable Applications
✓ Home emergency backup power
✓ Camping and outdoor activities
✓ Mobile phones and tablets
✓ Laptops and mobile office equipment
✓ LED lighting and speakers
✓ Fans and compatible TVs
✓ Small refrigerators within the rated limit
✓ Rice cookers and small appliances
✓ Compatible electric tools
✓ DC 12V vehicle and outdoor equipment
View Technical Specifications
Battery Type: LiFePO4
Battery System Voltage: 12.8V
Inverter Type: Pure sine wave
Rated AC Output: AC 220V / 50Hz / 600W
Maximum Solar Power: 18V / 150W
MPPT Input: 14.6–24V / 10A Max
DC Output: 12V / 8A
Dedicated Charger Input: AC 100–240V
Dedicated Charger Output: 14.6V / 5A
Charger Interface: DC5521
DC Ports: Two DC5521 outputs
USB-C Output: PD 18W
USB Output: 5V / 2A
Charging Cut-off Voltage: 3.65V per cell
Nominal Cell Voltage: 3.2V per cell
Discharge Cut-off Voltage: 2.3V per cell
Charging Protection Voltage: 14.6V
Discharge Protection Voltage: 9.2V
BMS Protection Range: 9.2–14.6V / 50A
Display: LCD display screen
Lighting: Built-in LED lighting
Controls: Independent AC, DC and LED switches

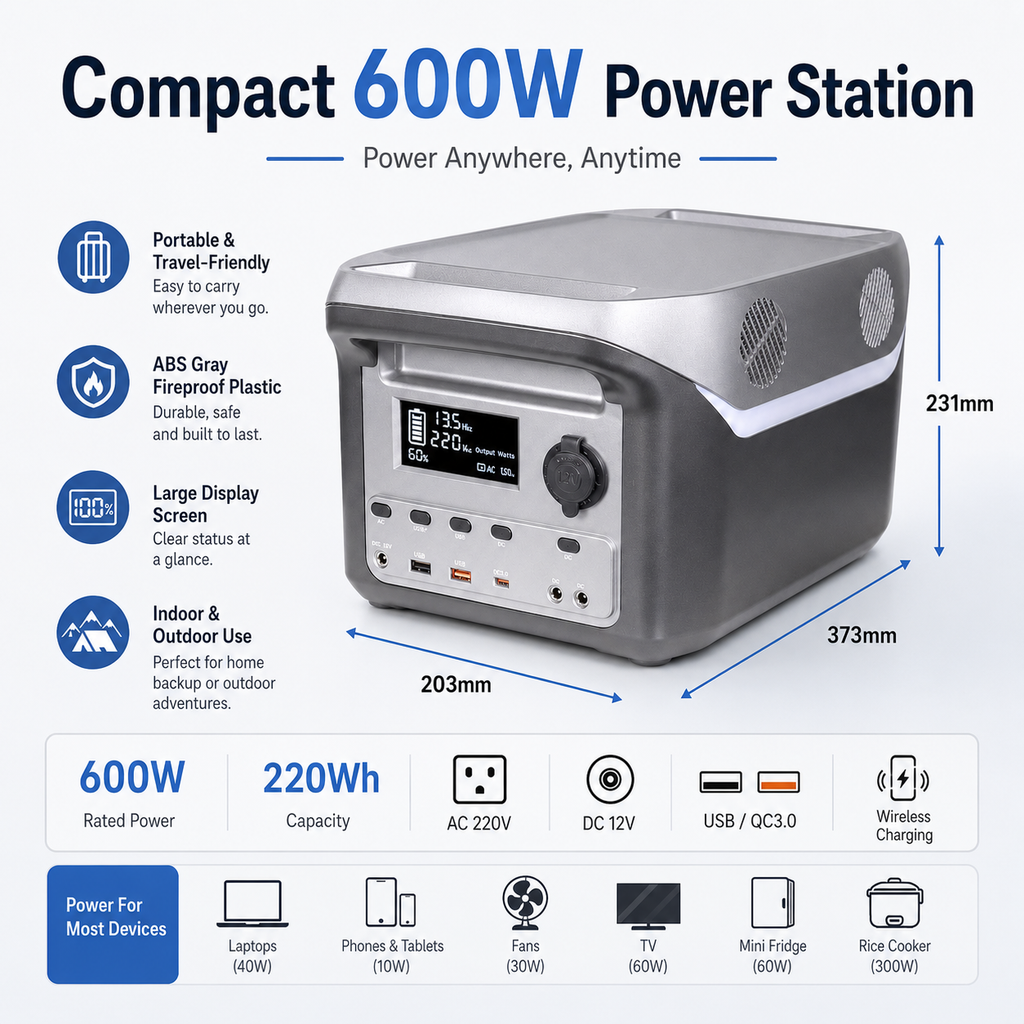

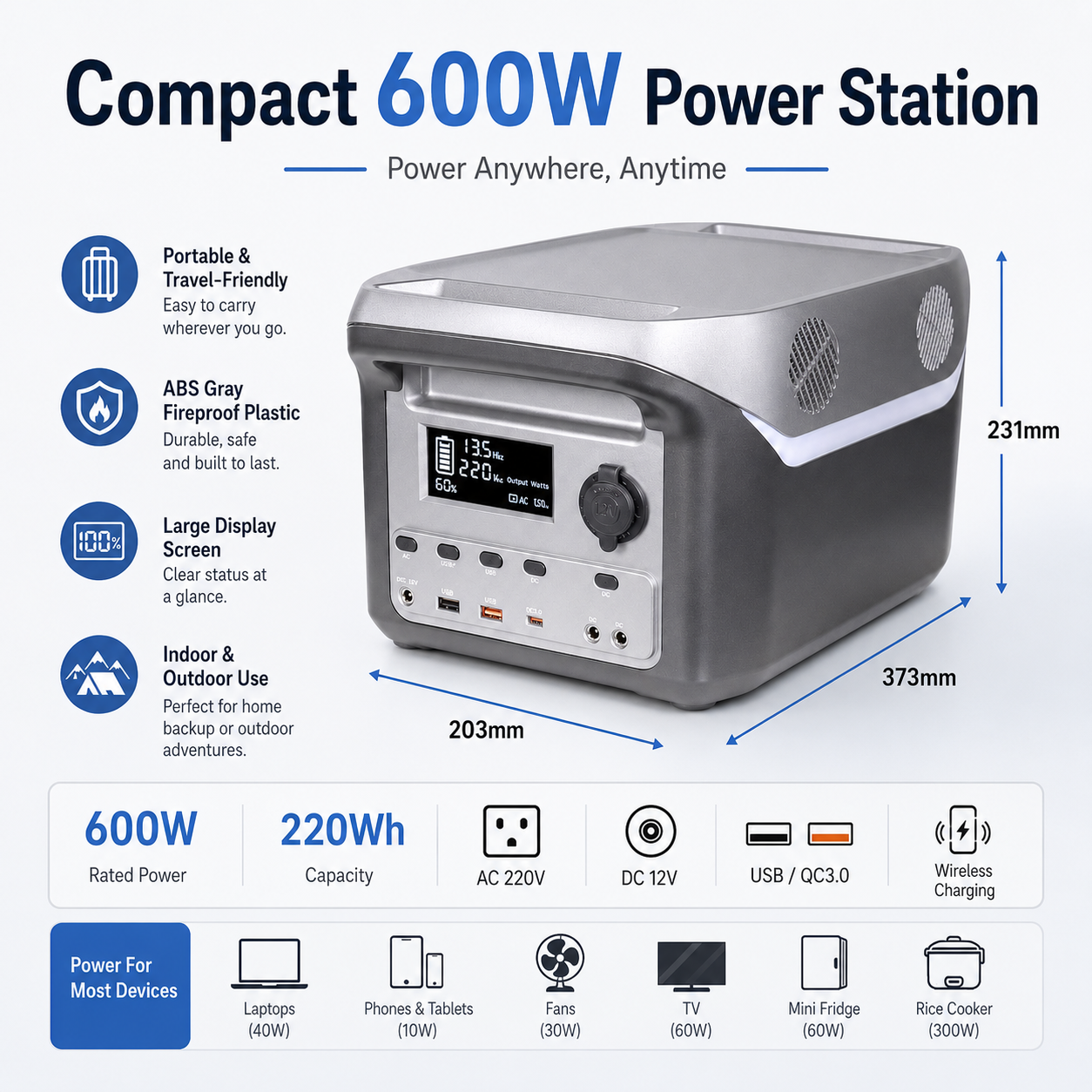

Product Size: 373 × 203 × 231mm
Battery Management & Protection
✓ Intelligent BMS battery management
✓ Charging protection
✓ Discharging protection
✓ Battery voltage monitoring
✓ LCD operating-status display
✓ Independent output control switches
✓ Designed to extend battery service life
Refrigerators, fans, rice cookers, pumps and electric tools may require higher starting power than their rated operating power. Confirm both starting wattage and continuous wattage before connecting a device.
CE · RoHS · FCC · UN38.3 · MSDS · Air Freight Report · Sea Freight Report
