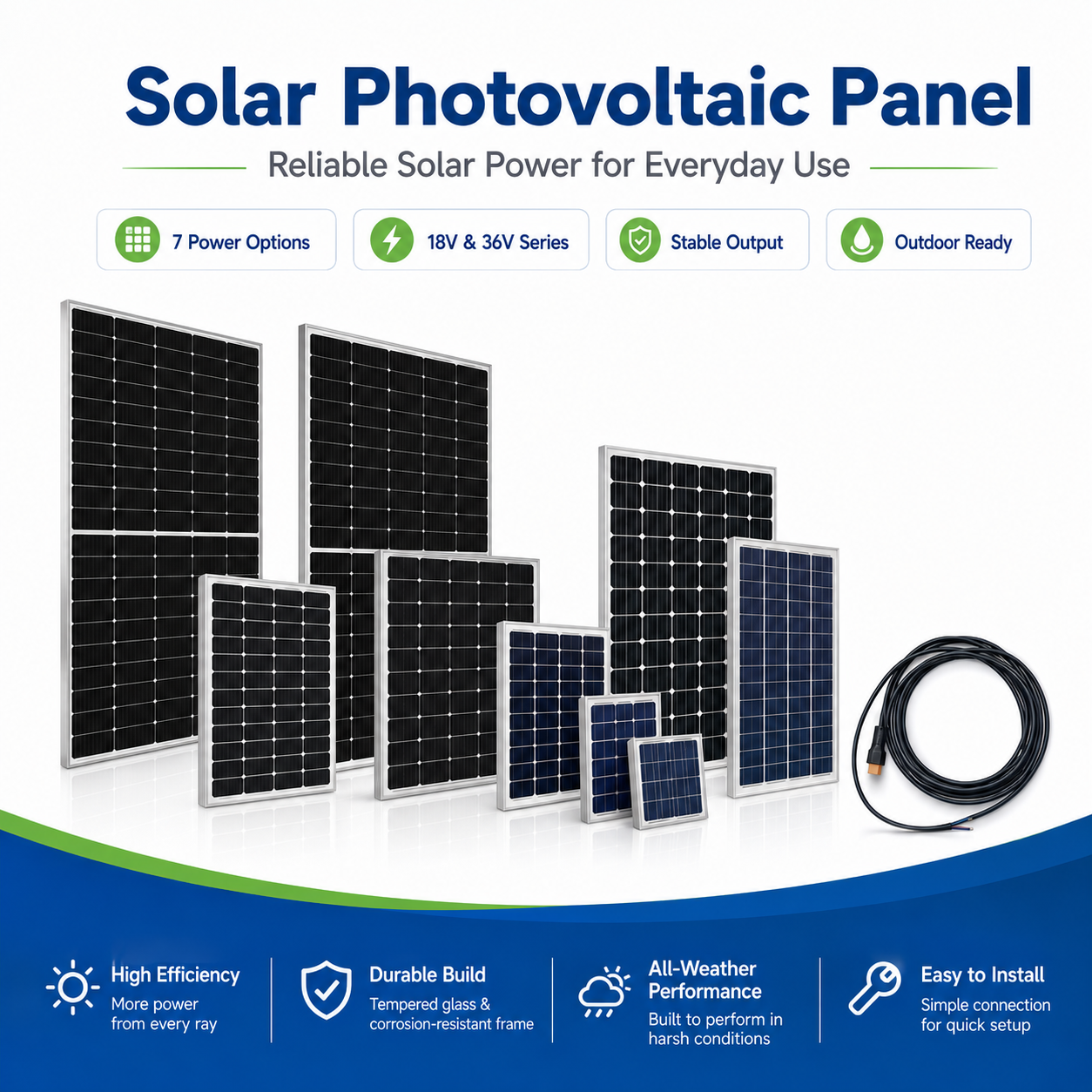

Rigid Solar Photovoltaic Panel
18V & 36V Solar Panels from 35W to 320W
This rigid solar photovoltaic panel series is available in seven voltage and power configurations, providing flexible solar charging options for small portable systems and larger off-grid applications.
Choose from compact 18V panels ranging from 35W to 130W, or larger 36V panels ranging from 220W to 320W according to your equipment, installation space and charging requirements.
Product Features

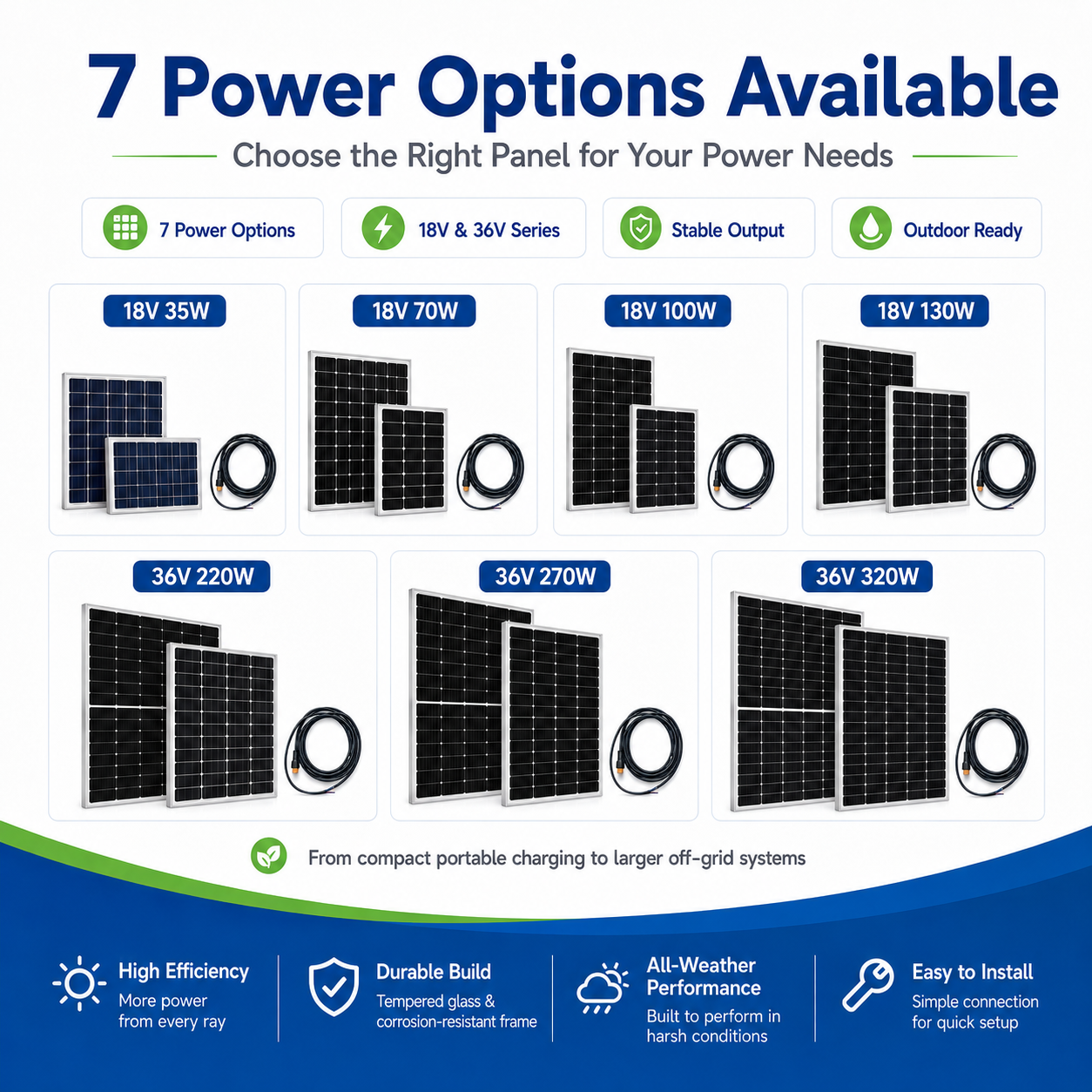

Seven options from 35W to 320W for different solar charging requirements.
Suitable for compatible portable energy storage systems, battery charging equipment and smaller solar applications.
Designed for compatible higher-voltage charging systems and applications requiring greater solar input.
The solid framed structure is suitable for fixed or supported installation where a rigid photovoltaic panel is required.
Select the appropriate panel according to available installation space, system voltage and required charging power.

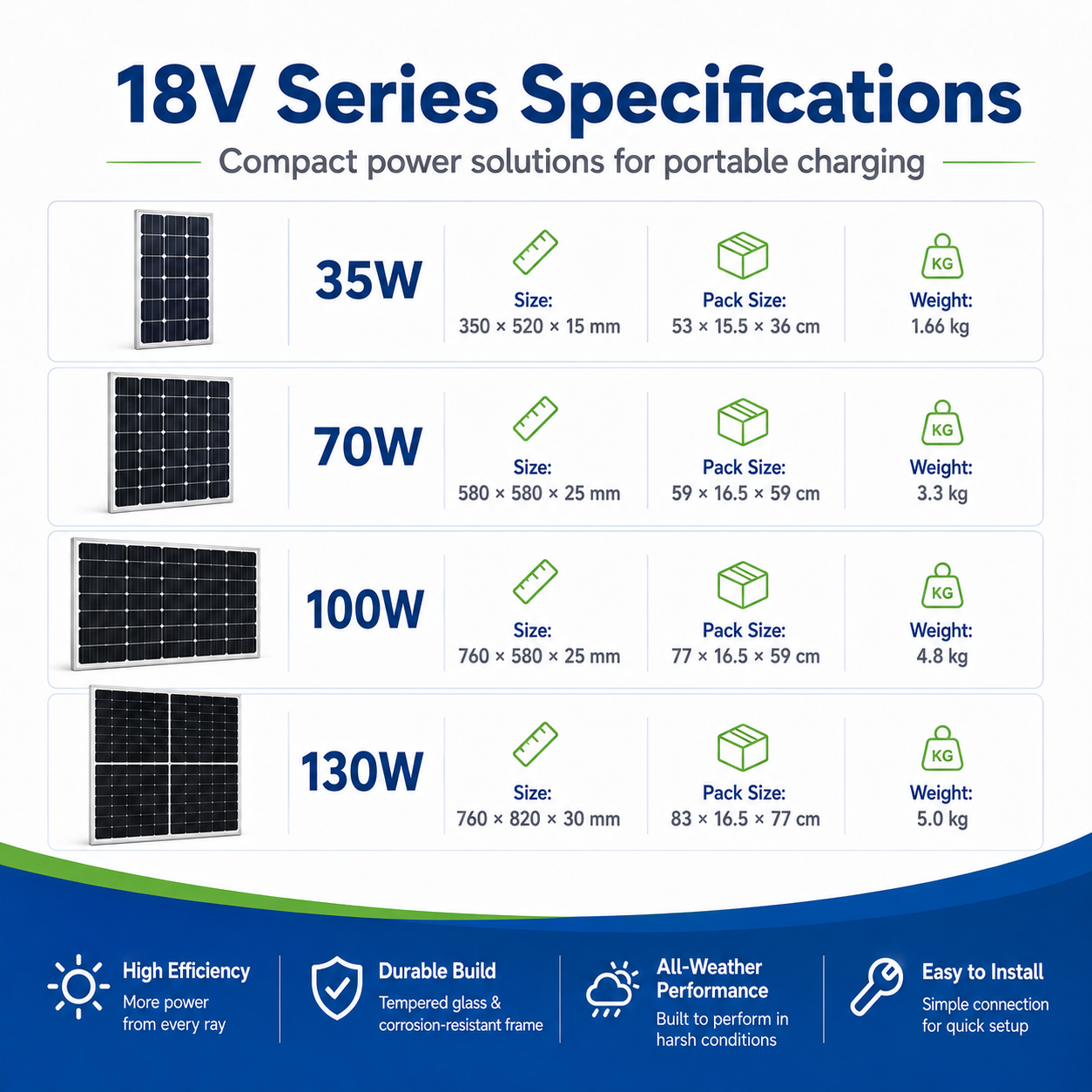

18V Series
350 × 520 × 15mm
1.66kg / piece
53 × 15.5 × 36cm
10 pieces
580 × 580 × 25mm
3.3kg / piece
59 × 16.5 × 59cm
6 pieces
760 × 580 × 25mm
4.8kg / piece
77 × 16.5 × 59cm
6 pieces
760 × 820 × 30mm
5kg / piece
83 × 16.5 × 77cm
5 pieces

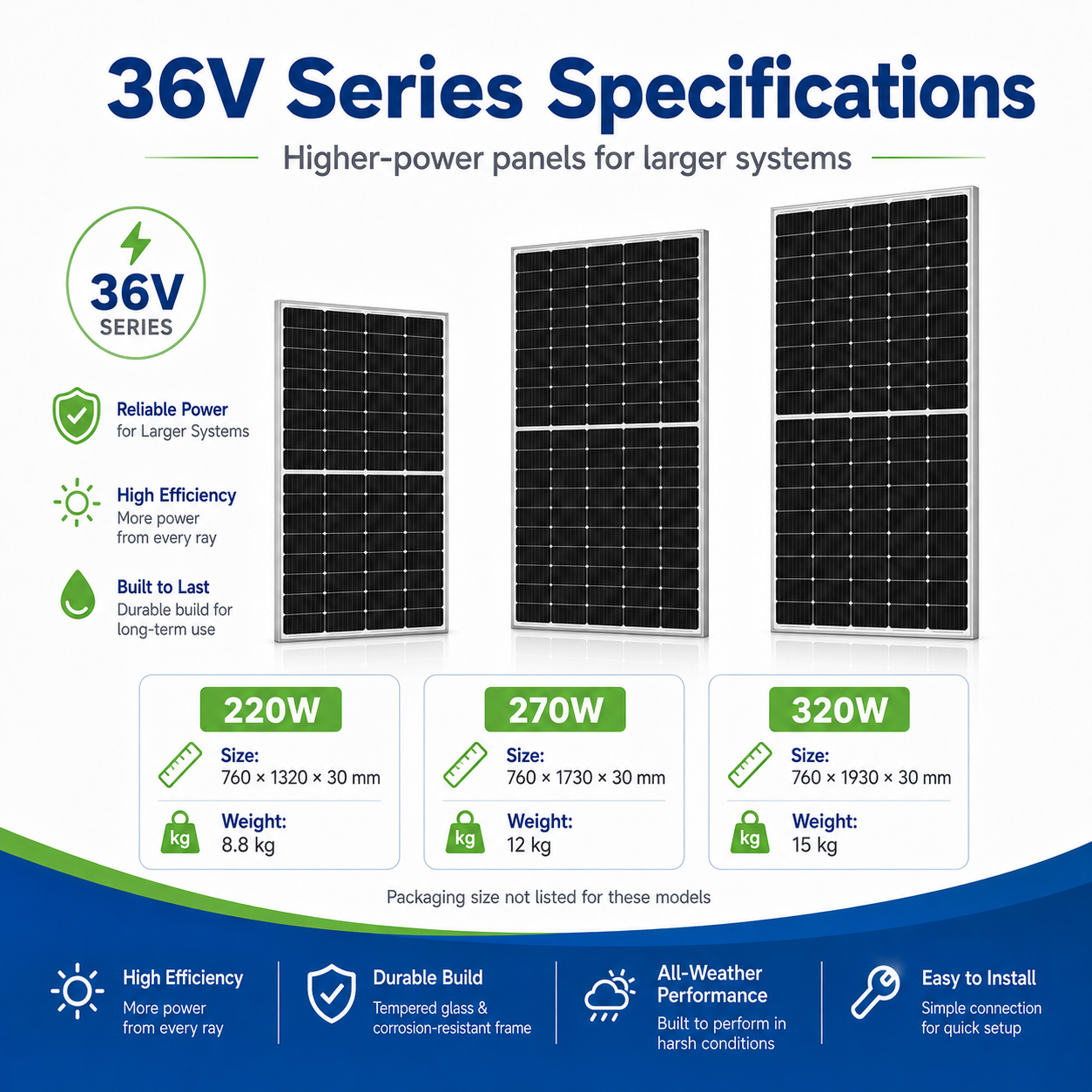

36V Series
760 × 1320 × 30mm
8.8kg / piece
760 × 1730 × 30mm
12kg / piece
760 × 1930 × 30mm
15kg / piece
Suitable Applications
✓ Portable power-station charging
✓ Battery and energy-storage systems
✓ RV and camper solar systems
✓ Cabin and off-grid installations
✓ Outdoor equipment power support
✓ Home backup solar charging
✓ Lighting and communication systems
How to Choose the Correct Panel
Step 1: Check the permitted solar-input voltage range of your power station, controller or battery system.
Step 2: Confirm the maximum supported solar-input wattage.

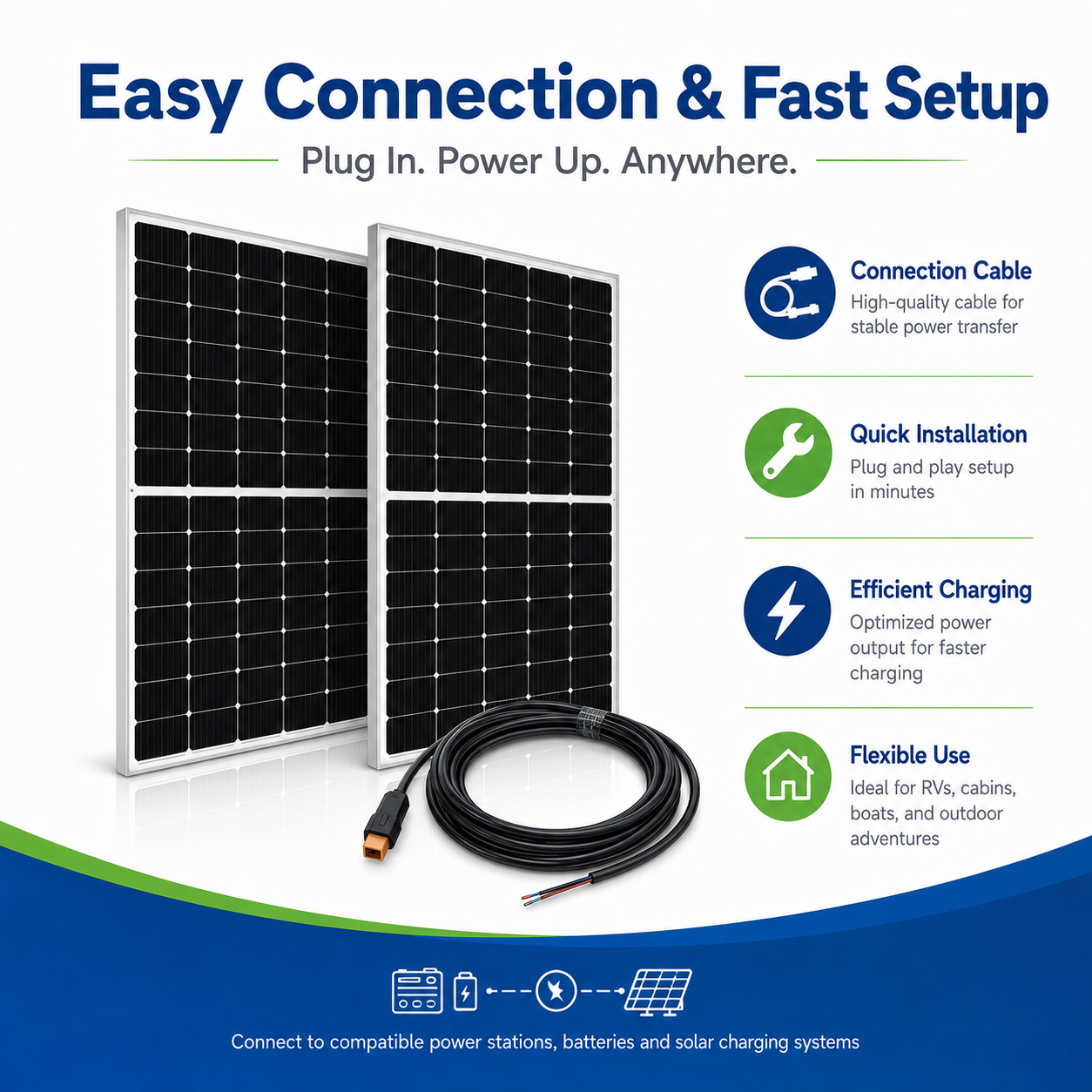

Step 3: Check the required connector type and polarity.
Step 4: Select a panel size suitable for your installation or storage space.
Solar-panel voltage, maximum open-circuit voltage, power, connector type and polarity must match the connected controller, battery or portable power station. Do not connect an incompatible panel directly.
Actual output power varies according to sunlight intensity, weather, panel angle, temperature, shading, cable loss and charging-controller efficiency.
Packaging information is currently listed for the 18V 35W, 70W, 100W and 130W models. Packaging dimensions for the 36V series should be confirmed before shipment.
